Piston compressor Well Kraft WB-0.36/8
Supply voltage
- 220V
- 380V
Specifications
Supply voltage, V
220, 380
Engine power, kW
3
Air pressure, bar
8
Number of cylinders, pcs
3
All characteristics
You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.
Our qualified specialists will definitely help you.
Description
Well Kraft WB-0.36/8 industrial high performance compressor with 135 liter tank
High performance and robust
The oil compressor is equipped with a powerful and reliable electric motor 3.0 kW, which easily copes with high loads, which accordingly affects the life of the compressor.
The device is protected by uninterrupted high-precision automation from overpressure or underpressure, overload of the electric motor and excessive wear of the compressor unit due to overheating.
The compressor is available in two mains connection versions - 220V or 380V.

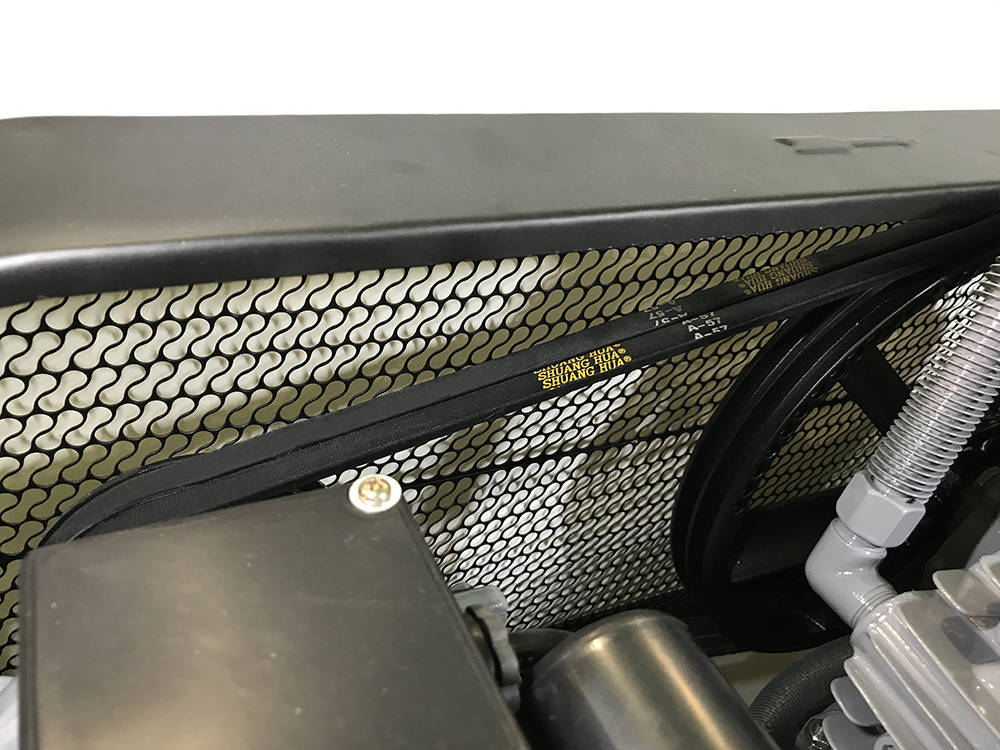

Double V-belt transmission - this design solution makes the main unit trouble-free, significantly reduces noise and minimizes the sudden stop of the compressor, because if one belt breaks, the compressor continues to work on the secondHigh level of reliability of the belt installation - a stuck piston will not damage the motor, but will only damage the belt.
The Well Kraft compressor is equipped with a oversized check valve to improve its performance and ensure a smooth start.
Long-lasting performance and excellent cooling

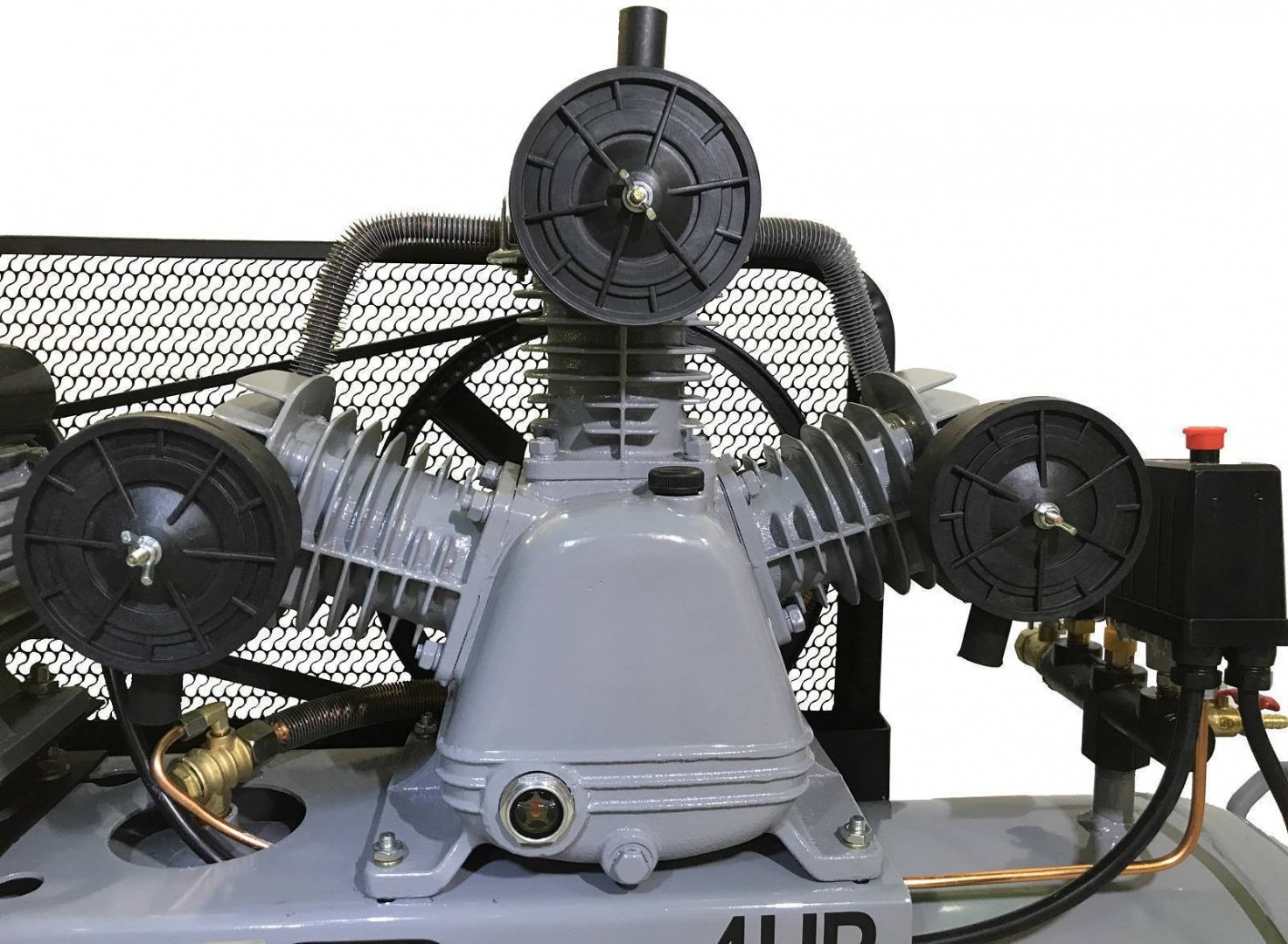

Cast-iron heads and cylinder cover with cooling fins for better heat dissipationAlso, the spokes on the pulley are angled, so that during the rotation of the pulley, an air flow is created that blows over the heads This solution serves as additional cooling and protects the compressor block from overheating.
Three pistons guarantee a continuous supply of air without forced stops, which allows you to organize the stable functioning of pneumatic systems. The impeller of the driven pulley and the pulley of the electric motor are protected by a metal grill. An oil level indicator is built into the compressor block.
Three air filters - the compressor can be freely used to work in places with a strong concentration of dustThe filter elements perfectly cope with their task and have a long service life.

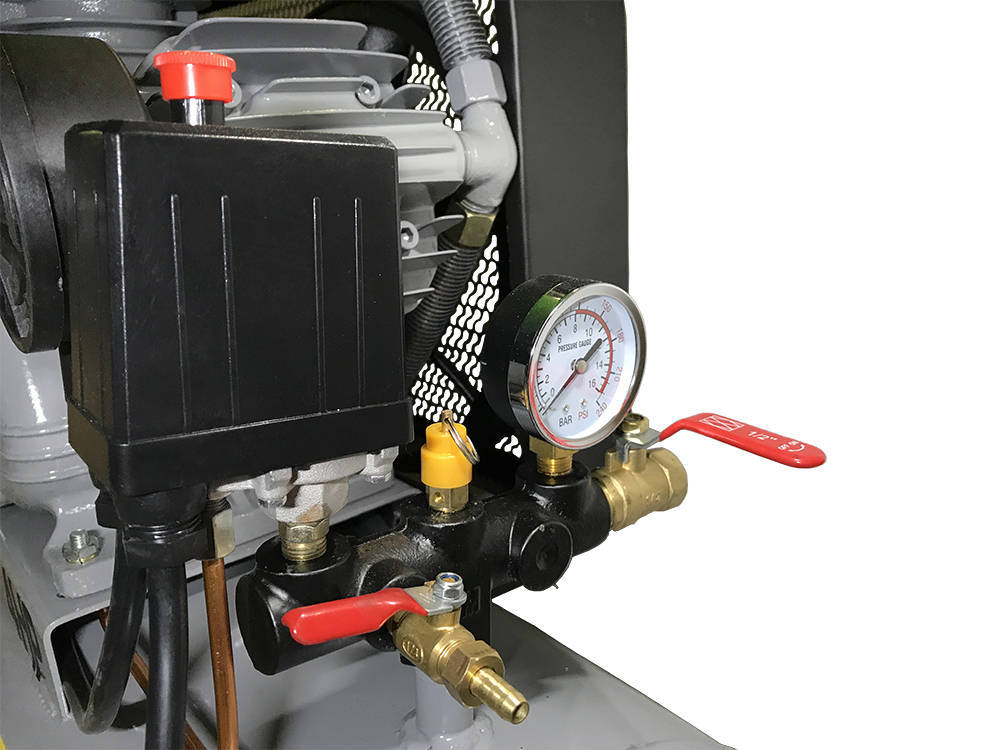

The Well Kraft compressor is equipped with two outlets for connection to the main pneumatic circuit and additional equipment. The built-in pressure gauge allows you to control the air pressure.
Despite its size and weight, the compressor has sufficient mobility for easy movement around the job site. Four large wheels and transport handles will allow you to move such a unit freely.
Scope
This industrial compressor is intended for use in repair, installation and painting work, in car repair shops, car services and service stations, tire shops, as well as in construction. Basically, such a compressor is used where it is necessary to use a small amount of pneumatic equipment and pneumatic tools.
Swap Drying Painting Water Spray< /b> Car washes
Another branch of the use of these models of compressors is one of the areas of painting - airbrushing. To prove yourself in this area, you need a certain taste, talent, an airbrush, and, of course, a device used to supply air to an airbrush - a compressor.
Specifications
|
vendor code
|
012065 |
|
Supply voltage, V
|
220, 380 |
|
Engine power, kW
|
3 |
|
Air pressure, bar
|
8 |
|
Number of cylinders, pcs
|
3 |
|
Receiver volume, l
|
135 |
|
Productivity, l/min
|
450 |
|
Compressed air connection
|
No |
|
type of drive
|
Ременной |
|
engine's type
|
Электрический |
|
Compressor type
|
Oil |
|
Receiver location
|
Horizontal |
|
type of instalation
|
Передвижной |
|
Total height of the product, mm
|
850.0000 |
|
The total width of the product, mm
|
480.0000 |
|
Total length of the product, mm
|
1260.0000 |
|
Warranty, months
|
12.0000 |
