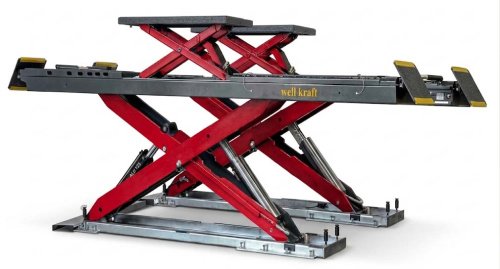

Electro-hydraulic scissor lift Well Kraft TS501
from 36 915 zł
Type of instalation
- Floor-mounted
- subfloor
Model
- WK501TS.HR
Specifications
Load capacity, kg
5000
Distance between platforms, mm
820
Platform length, mm
5000
Platform width, mm
550
All characteristics
You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.
Our qualified specialists will definitely help you.
Description

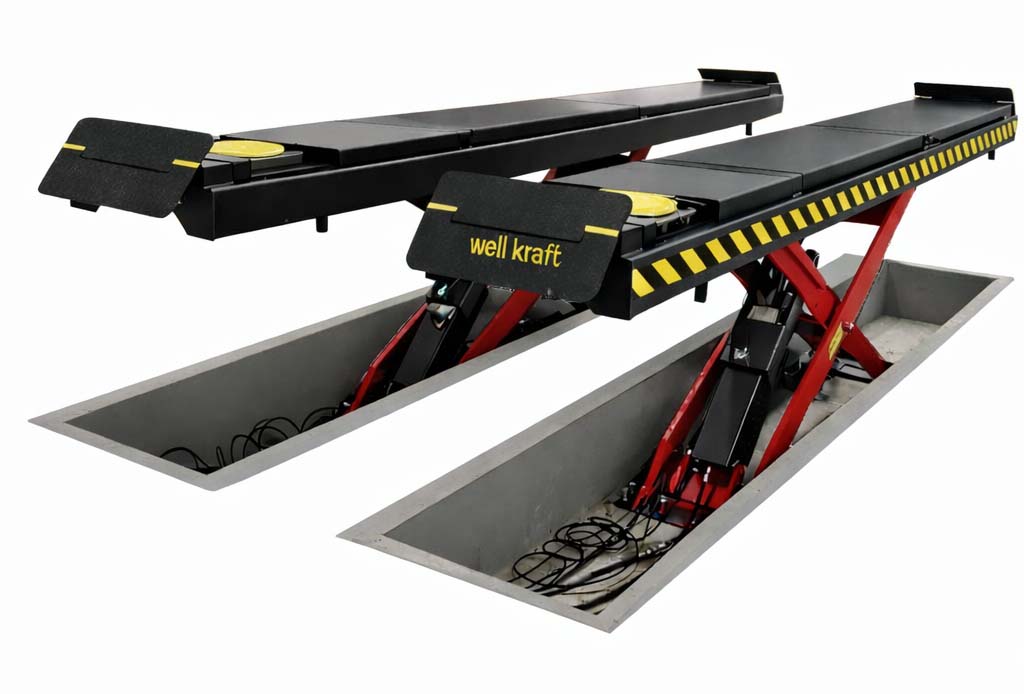

Electro-Hydraulic Scissor Lift 5T Well Kraft TS501
Flush-mounted installation
Built-in second-level lifting platform with optional single extension up to 1850 mm
Lifting height up to 2160 mm and optional platform length up to 5000 mm
Pneumatic locking and unlocking system
Integrated explosion-proof safety valve
Rotating shafts with lubrication points
Front and rear safety guard height — 100 mm
For enhanced safety, the control panel operates at 24 V
Electrical upper-limit protection and mechanic foot protection
Synchronization monitoring kit — optional
Central control board with multiple functions — optional
Specifications
|
vendor code
|
009170 |
|
Load capacity, kg
|
5000 |
|
Distance between platforms, mm
|
820 |
|
Platform length, mm
|
5000 |
|
Platform width, mm
|
550 |
|
Lift type
|
Electro-hydraulic |
|
Min. height, mm
|
330 |
|
Max. height, mm
|
1850 / 2160 |
