Electro-Hydraulic mobile Single Axle Lift 3t Well Kraft P130
- 400 V
- 230 V
Our qualified specialists will definitely help you.
Description

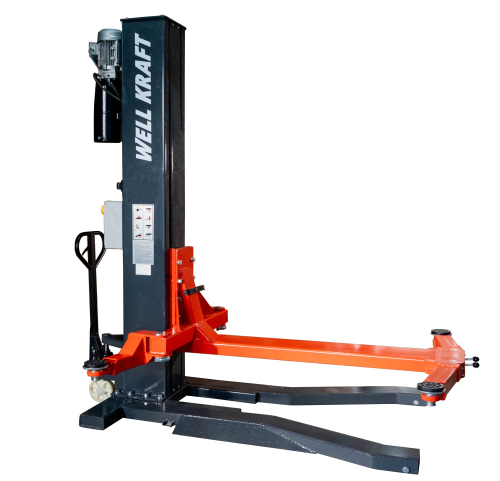

Single-column mobile lift Well Kraft P130 / P130M Lifts
Reliability, safety, and convenience for the daily operations of your car service!
Features Well Kraft P130\ P130М
- Lifting capacity - 3000 kg
- Lifting height – 1900 mm with a secure locking system.
- Low profile – only 95 mm, which allows working even with cars that have low ground clearance.
- Flexible swivel arms with a strong lock and a wide selection of lifting points.
- Automatic unlocking of the electromagnetic safety system.
- Modern 24 V control unit – simplicity and comfort of use.
- Top limit switch in the standard package.
- Hydraulic cylinder with a parachute valve – additional protection in case of hose damage.
- Protective column cover included.
- 3-stage threaded pads for different types of cars.
- Automatic arm locks for safe operation.
- Pump safety valve – protection against overload.
- Model P130M – a mobile version with wheels for easy relocation.
Well Kraft P130 / P130M – is a universal solution for car service stations that combines reliability, safety, and operational efficiency.
Specifications
|
vendor code
|
008864 |
|
Load capacity, kg
|
3000 |
|
Lifting height, mm
|
1900 |
|
Working height, mm
|
95 |
|
Supply voltage, V
|
230, 400 |
|
Length of levers, mm
|
848 |
|
Lift type
|
Electro-hydraulic, Mobile |
|
Total height of the product, mm
|
2604 |
|
The total width of the product, mm
|
1682 |
|
Total length of the product, mm
|
1838 |
