Manual grease gun from drums 15kg Meclube 016-1145-C15 mobile

Description

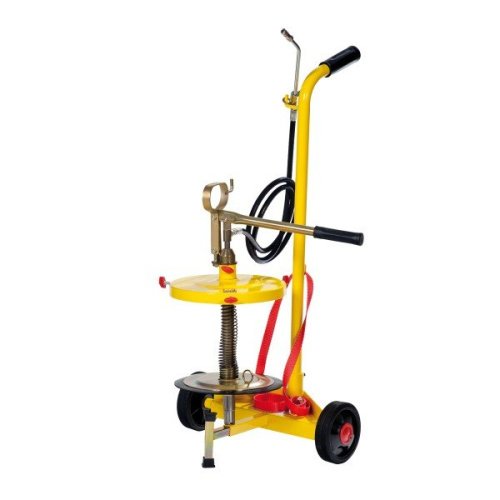

Meclube 016-1145-C15 Portable Manual Grease Pump for 15kg Drums

The Meclube 016-1145-C15 model is a practical and reliable manual device designed for transferring thick lubricants from standard 15kg drums. Thanks to its durable metal construction and ease of use, this pump is ideal for workshops, auto service centers, and industrial facilities. The working pressure at the outlet is up to 400 bar, allowing for efficient, metered delivery of grease — 6 grams per cycle.

The equipment includes a two-meter rubber hose, fitted at its end with a metal curved nozzle and a four-jaw coupler, ensuring a tight connection to lubrication points — even in hard-to-reach areas such as inclined or elevated sections. The Ø265 mm pressure plate with a spring mechanism allows for easy movement along the rod, and the Ø280 mm lid with three clamping bolts is compatible with drums ranging from Ø240 to Ø280 mm, providing stable vertical fixation of the container.

For convenient transport, the set is equipped with a two-wheeled trolley with a comfortable handle, making the device mobile and suitable for frequent relocation.

Included in the set:

• Manual grease pump
• Two-wheeled trolley for transport
• Drum lid Ø280 mm
• Pressure diaphragm Ø265 mm with spring
• Flexible hose 1SC 1/4” F 1/4”–F 10X1, length 2 meters
• Valve type M-F 10x1 mm
• Rigid dispensing tube 200 mm long with a 4-lobe connection

Technical Parameters:

• Grease output pressure: up to 400 bar
• Performance: 60 g per 10 lever presses
• Weight: 11.25 kg
• Compatibility with drums: 15 kg
