Manual grease gun 16kg Meclube 016-1141-000

Description

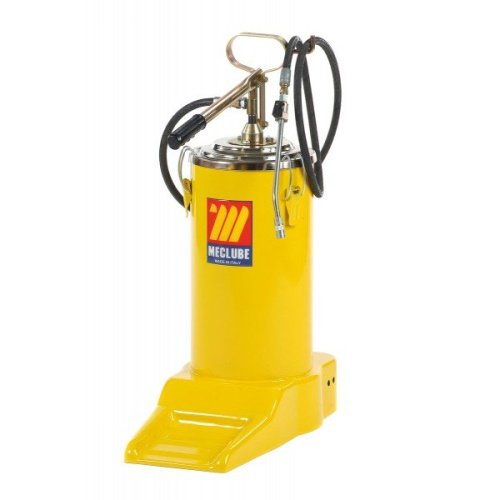

Meclube 016-1141-000 Manual High-Pressure Grease Gun (16 kg)

The Meclube 016-1141-000 manual high-pressure grease gun is designed for quick and efficient distribution of lubricants directly from the tank to lubrication points. It's ideal for field use as it doesn't require an external power source. If desired, the model can also be equipped with wheels for convenient movement around the work area.

The pump features an extended lever with a plastic casing for ease and convenience of operation. A two-meter hose allows for single-person lubrication, reaching even hard-to-access points. The rigid 200 mm long nozzle with a 4-jaw fitting ensures a reliable and tight connection to the grease nipple. The output grease pressure is 400 bar, delivering 60 grams of grease for every 10 lever cycles.

The mobile 16 kg tank allows for lubricating a large number of mechanisms without frequent refills. A special pressure plate with a spring (Ø220 mm diameter) helps fully utilize the grease, preventing its accumulation on the container walls.

Components:

• Mobile tank with a capacity of 16 kg.
• Pressure plate with a diameter of Ø220 mm and spring.
• Hose 1SC 1/4” with threaded connections F 1/4” – F 10X1, length 2.0 m.
• Valve M-F 10x1 mm.
• Rigid tube 200 mm and 4-jaw connection.

Technical Specifications:

• Weight: 12.85 kg.
• For drums with a capacity of: 16 kg.
