Manual grease gun 16kg Meclube 016-1142-000 mobile

Description

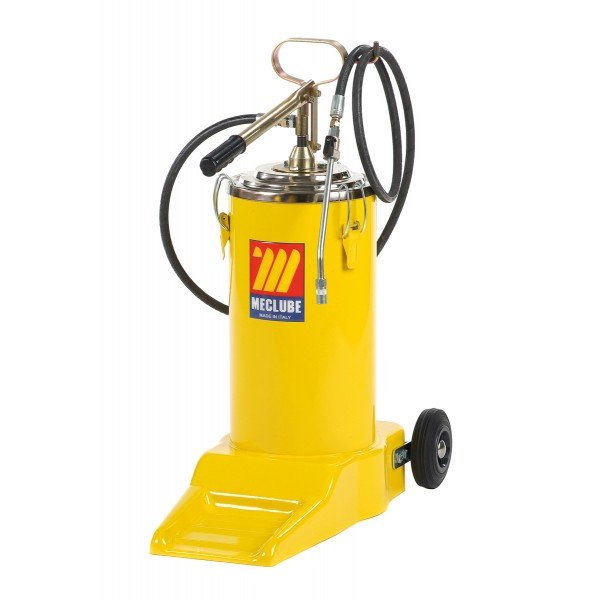

Meclube 016-1142-000 High-Pressure Grease Gun (16 kg)

The Meclube 016-1142-000 high-pressure grease gun is designed for rapid and efficient distribution of lubricants directly from the tank to lubrication points. Thanks to its complete independence from a power source and the presence of two wheels, the device offers exceptional mobility, making it ideal for use in both field conditions and at large enterprises or workshops. A model without wheels is also available for stationary applications.

The pump is equipped with an extended lever with a plastic casing for maximum convenience. A two-meter hose allows for lubrication even in hard-to-reach places, without needing assistance from another person. The rigid 200 mm long nozzle with a 4-jaw fitting ensures a reliable and tight connection to the grease nipple. The output grease pressure is 400 bar, providing an efficient flow of 60 grams of grease for every 10 lever cycles.

The mobile 16 kg tank allows for lubricating a large number of mechanisms without frequent refills. A special pressure plate with a spring (220 mm diameter) helps to fully utilize the grease, preventing its accumulation on the container walls.

Components:

• Mobile tank with a capacity of 16 kg.
• Pressure plate with a diameter of Ø220 mm and spring.
• Hose 1SC 1/4” with threaded connections F 1/4” – F 10X1, length 2.0 m.
• Valve M-F 10x1 mm.
• Rigid tube 200 mm and 4-jaw connection.

Technical Specifications:

• Weight: 14.3 kg.
• For drums with a capacity of: 16 kg.
