Description

Wheel Balancer 3D Well Kraft W-820B with Laser Line

Wheel Balancer 3D Well Kraft W-820B with Laser Line - for working with wheels of motorcycles, passenger cars, light trucks, and commercial vehicles (rim diameter 12-24 inches, rim width 1.5-20 inches)
Microprocessor control system.

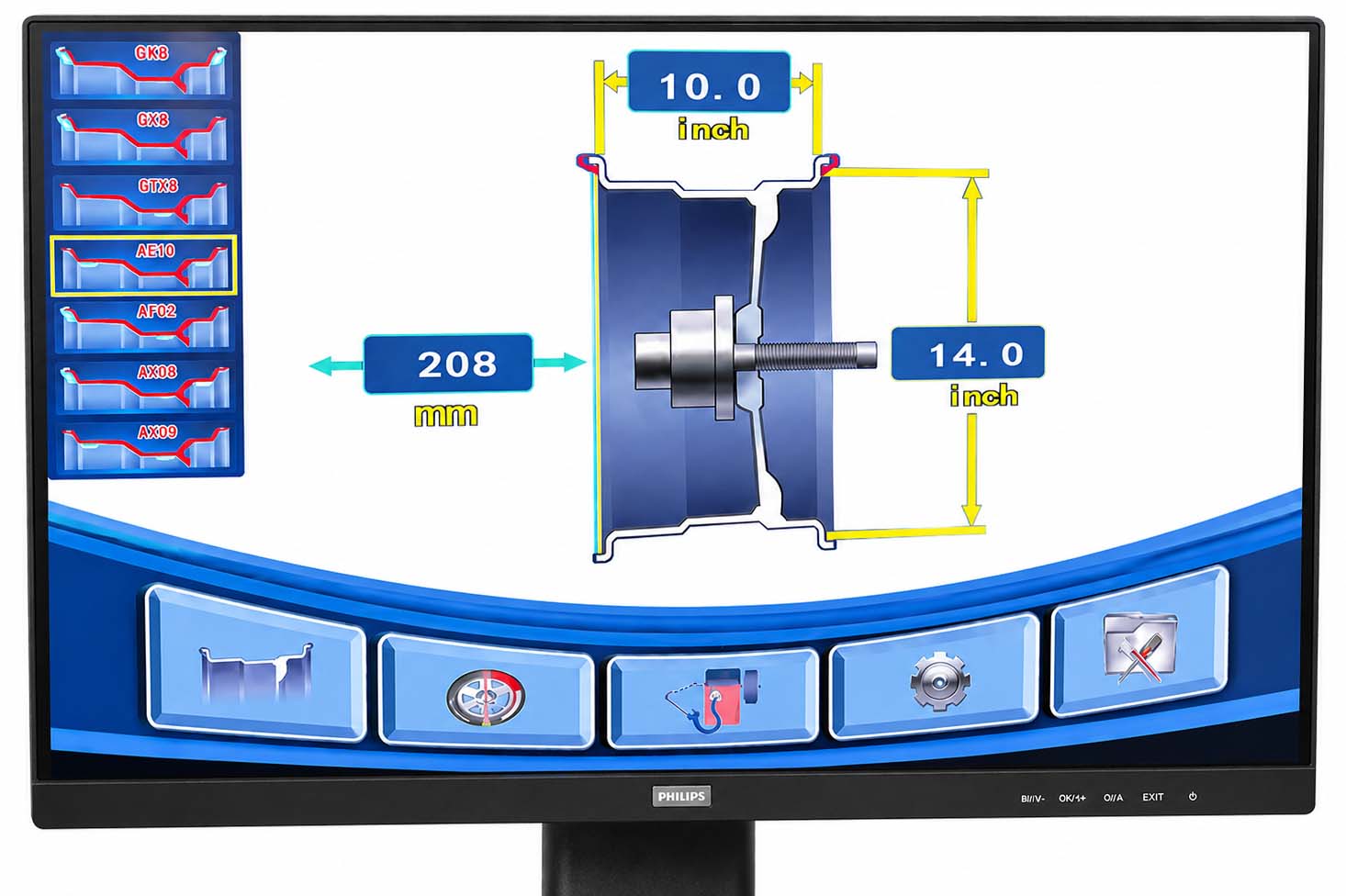

The stand is equipped with a large TFT SVGA 19" monitor. A user-friendly interface with animations and prompts allows the operator to easily navigate through the sequence of actions and during all stages of the balancing process.

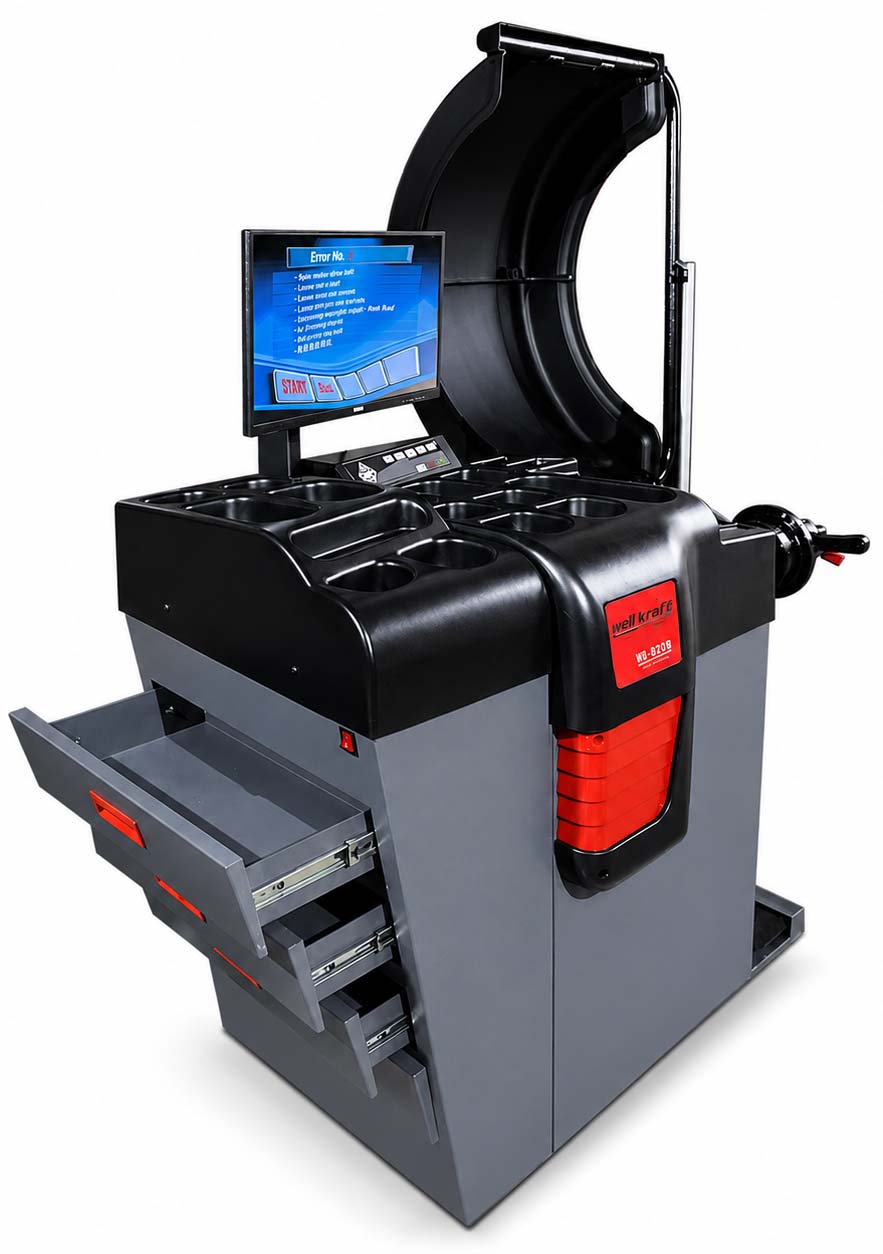

Convenient ergonomic table with compartments for weights and side built-in drawers for storing tools and consumables.
A fast balancing process is achieved thanks to automatic start when the protective cover is lowered and automatic stopping of the wheel in the position of external unbalance.
The wheel guard ensures safety and protection for the operator during balancing.
Brake pedal - To hold the wheel at the moment of installing the balancing weight.

2 laser pointers Measurement time 7 sec Self-diagnostics Hidden weight program Rim 12"-24" Max. weight 70 kg

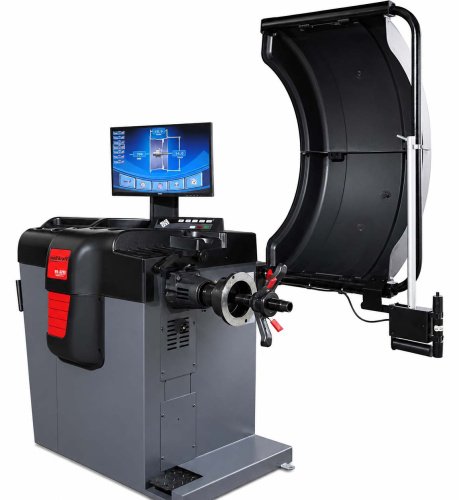

Wheel Balancer 3D Well Kraft W-820B

Main Functions

Quick balancing program selection;
Three automatic ALU S programs;
ALU-1 - This function determines the lateral and radial runout of alloy rims. Balancing weights are placed at the specified points.
ALU-2 - This function determines the lateral and radial runout of alloy rims. Balancing weights are placed at the specified points.
ALU-3
ALU-6H - weight at 6 o'clock, option to choose the weight attachment point from below at "18:00" o'clock.
ALUS - This function determines the lateral and radial runout of alloy rims. Balancing weights are placed at points determined by the operator.
STA - Static mode: This function determines the radial runout of steel rims. Balancing weights are placed in the central position of the rim.
STA1
Self-diagnostics - allows automatic detection of possible errors and faults during the operation of the stand. This helps the operator to quickly identify and eliminate problems, ensuring reliable and uninterrupted operation of the stand. Thanks to this function, the possibility of serious technical problems is minimized, and the stand is always ready to perform its tasks with high efficiency.
DYN - Dynamic mode (standard): This function determines the lateral and radial runout of alloy and steel rims. Balancing weights are placed on the outer and inner sides of the rim of the wheel being balanced.

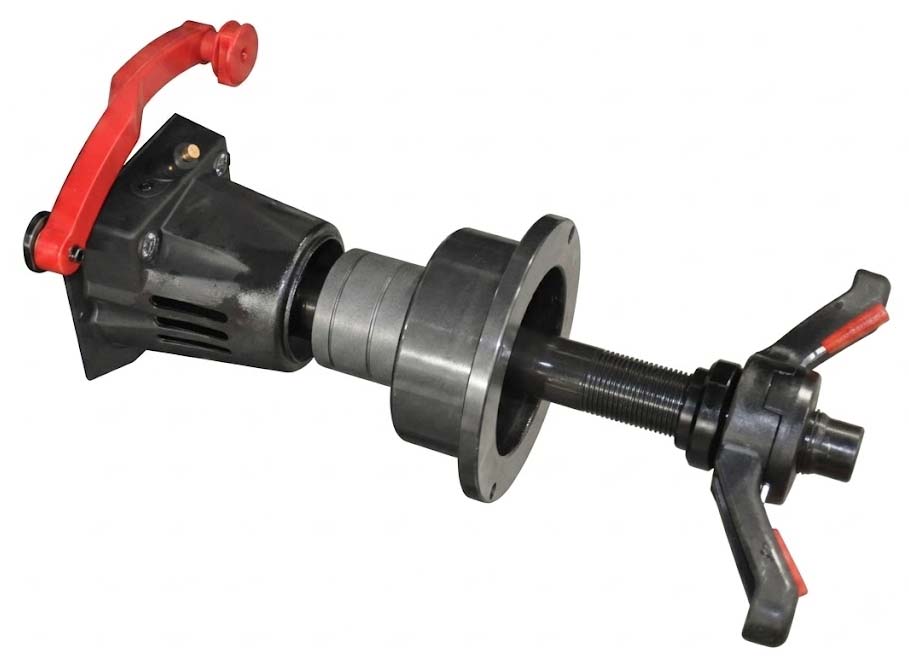

Convenient Wheel Clamping

Guarantee of centering accuracy and optimal wheel clamping force. Optimization – determining the optimal position of the tire relative to the rim. The design of the equipment ensures secure fixation of the wheel, stable operation, and accurate balancing results even during intensive operation.
External 3D ruler - automatic measurement and entry of rim width. Electronic 2D ruler - automatic entry of distance and rim diameter. Automatic brake - wheel fixation for precise installation of weights. Autoselect - the stand automatically identifies and selects the balancing mode after measuring the rim parameters.

Rim Illumination and Laser Pointer for Weight Installation

2 laser pointers (operator's choice) help precisely determine the installation position of balancing weights on the rim.
LED rim illumination helps to work comfortably even in limited lighting conditions.
Hidden Weight program - for placing weights behind the rim spokes;
The wheel balancer has a built-in function for splitting weights (hidden weights). This function allows the balancer to determine the installation locations of weights behind the spokes by splitting one large weight into two smaller ones, distributing them so that they are hidden behind the spokes. Unit switching: gram / ounce : mm / inch

 3D Wheel Balancer Well Kraft W-820B with Laser Line - for working with wheels of motorcycles, passenger cars, light trucks, and commercial vehicles (wheel diameter 12-24 inches, wheel width 1.5-20 inches). Microprocessor control system. The stand is equipped with a large TFT SVGA 19" monitor. A user-friendly interface with animations and prompts allows the operator to easily navigate the sequence of actions and all stages of the balancing process. Convenient ergonomic table with compartments for weights and integrated side drawers for storing tools and consumables.

Features of Well Kraft W-820B

• Two laser lines (user selectable) - the weight installation location is indicated by a red line, the area is clearly visible and allows for neat, very precise, and even attachment of the adhesive weight.
• External 3D ruler - automatic measurement and input of wheel width.
• 2D electronic ruler - automatic input of distance and wheel diameter.
• Automatic brake - wheel fixation for precise weight installation.
• Autoselect - the stand automatically detects and selects the balancing mode after measuring wheel parameters.
• ALU-6H - weight at 6 o'clock, possibility to choose the weight attachment location at the bottom at "18:00" o'clock.
• Disc illumination in weight installation mode.



---



Lower Laser Pointer



Upper Laser Pointer



LED Illumination

Functions:




• Quick selection of balancing program (ALU-S, ALU1, ALU2, ALU3, STAT, STAT-1, DYNAMIC);
• Hidden Weight program - for placing weights behind the spokes of the disc.
• Program for optimizing tire position relative to the disc;
• Self-diagnosis and self-calibration of the machine: the machine is equipped with self-check and calibration functionality, which guarantees its reliable and accurate operation.


 Four Automatic ALU Programs


 Two Static Imbalance Programs - STATIC


 Dynamic Imbalance Program - DYNAMIC
