Diagnostic Scanner for Passenger Cars TEXA Navigator Nano S 2 - CAR

Description

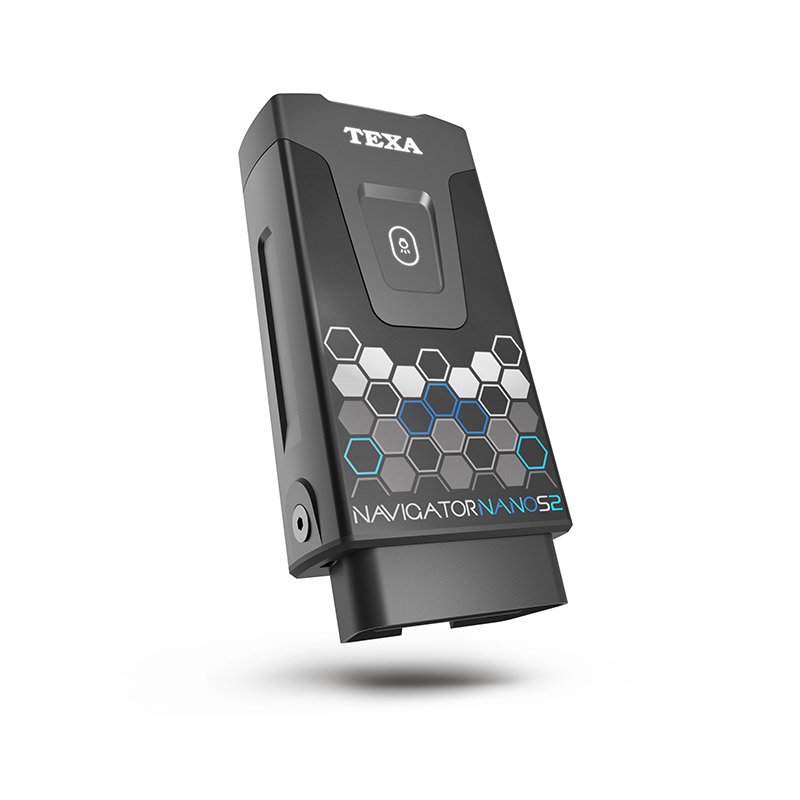

NAVIGATOR NANO S 2: Compact Solution for TEXA Automotive Diagnostics

The NAVIGATOR NANO S 2 is an advanced diagnostic interface from TEXA, designed for efficient passenger car diagnostics. Its compact size, robustness, lightness, and ergonomic design perfectly meet the needs of modern auto workshops.

Every aspect of the NAVIGATOR NANO S 2 is designed to meet the demands of professionals. The interface is equipped with innovative technical details: a new-generation processor, 8 GB of storage memory, and extended connectivity options, including a Bluetooth 5.0 module.

The NAVIGATOR NANO S 2 is compatible with modern communication protocols CAN FD (supporting simultaneous management of 3 channels) and DoIP, ensuring readiness for diagnosing the latest car models.

Customer Support: Technology and Team at Your Service

TEXA offers exclusive services that allow you to maximize the potential of NAVIGATOR NANO S 2. Specialists from the TEXA Call Center provide continuous support*, ensuring your workshop always stays at the forefront of automotive technology. It's a reliable ally for technicians' daily work.

* Please check service availability in your country.

Technical Specifications

• Processor: CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM
• SRAM Memory: 16 Mbit (1024K x 16 bit)
• eMMC Memory: 8 GB on 8-bit bus
• External Flash Memory: 16 Mbit NOR (1M x 16 bit)
• Built-in Battery: Lithium-polymer, 3.7 V, 130 mA/h
• Power Supply: 12 V DC (from vehicle battery via OBD)
• Wireless Communication: Bluetooth 5.0 class1 (2402 – 2480 MHz)
• Maximum RF Transmitter Power: 10 dBm
• Wired Connection: Virtual COM via USB Full Speed; USB C (5 V)
• Electronic Switch: 2-position, 13 independent positions
• Diagnostic Connector: OBD

Supported Protocols:

• Blink codes
• K, L (with 60 mA current protection), ISO9141-2, ISO14230
• CAN_FD 11898-2:2016 (3 channels)
• CAN ISO 11898-3
• CAN SAE J2411 Single Wire
• SAE J1850 PWM and VPW
• Ethernet DoIP ISO13400-3

• Power Connector: OBD
• User Interface: LED RGB x4, Buzzer
• Consumption 12 V: 250 mA
• Operating Temperature: 0 ÷ 40 °C
• Storage Temperature: – 20 ÷ 60 °C
• Battery Charging Temperature: 0 ÷ 45 °C
• Operating Humidity: 10% ÷ 80% non-condensing
• Weight: 72 g

Environmental Conditions:

• Usage: indoors and outdoors
• Altitude: < 2000 m
• Power Supply Voltage Fluctuations: ±10%
• Overvoltage Category: II
• Pollution Degree: 2
• Maximum Relative Humidity 80% at temperatures up to 31 °C, linearly decreasing to 50% at 40 °C

Directives:

• RED 2014/53/EU
• RoHS 2011/65/EU and Delegated Directive 2015/863/EU

Regulations:

• Radio Equipment Regulations 2017 No. 1206
• RoHS Regulations 2012 No. 3032

Electromagnetic Compatibility:

• ETSI EN 301 489-1
• ETSI EN 301 489-17

Radio Systems:

• ETSI EN 300 328

Electrical Safety:

• EN 62368-1, EN 62368-3, EN 62311
