Pneumatic pump 60:1 for drums 12-16kg Meclube 010-1000-000

Description

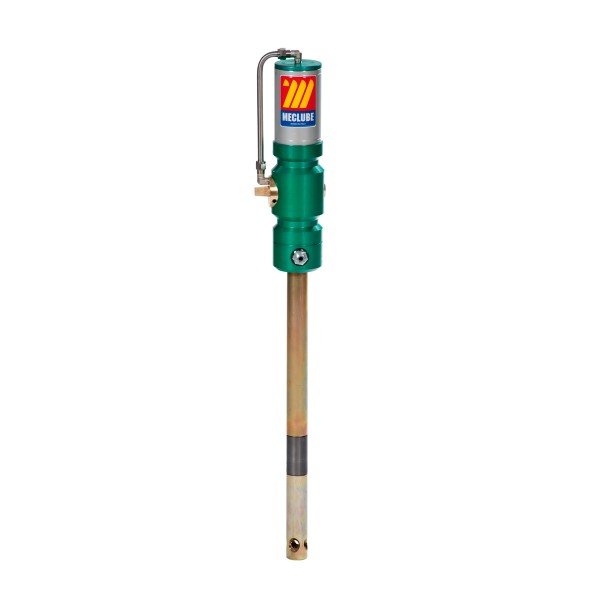

Pneumatic pump (mod. 660) with a compression ratio of 60:1, used for distributing high-pressure dense greases of any kind. The pump's body is made of aluminum alloy with a special anti-corrosion coating. The pump is manufactured by Meclube using high-tech electronic equipment and undergoes rigorous quality control.

The 410 mm long and 30 mm diameter rod (pipe) is ideal for small capacity containers (12-16 kg). The pump is self-priming, requiring no pre-filling. Low air consumption (130 l/min.) and working pressure of 2.5-8 bars allow the use of relatively economical standard compressors.

High performance of 1600 g/min. (at 6 bars pressure) enables rapid grease distribution over both short and long distances. Despite its power, the pump operates fairly quietly - the noise level is only 76 dB. Due to its lightweight, the pump is easy to move from container to container. The simple design ensures a long service life without overloads and wear. Pneumatic drive eliminates the possibility of sparking, making the pump extremely safe to use.

• Liquid pressure at outlet: 8 bars;
• Air inlet connection: F 1/4" G;

• Grease outlet connection: M 1/4" G;
• Tube diameter: 30 mm;
• Tube height: 410 mm;
• For 12-16 kg barrels.
