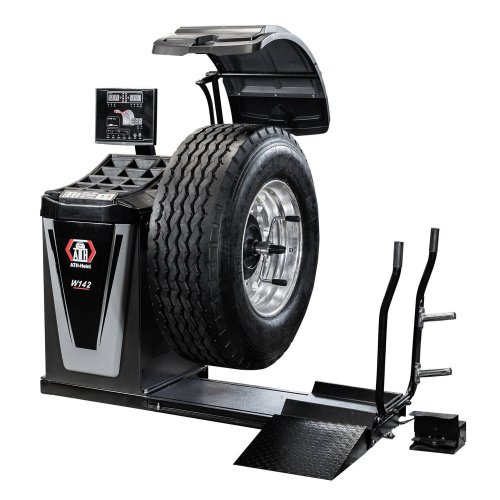

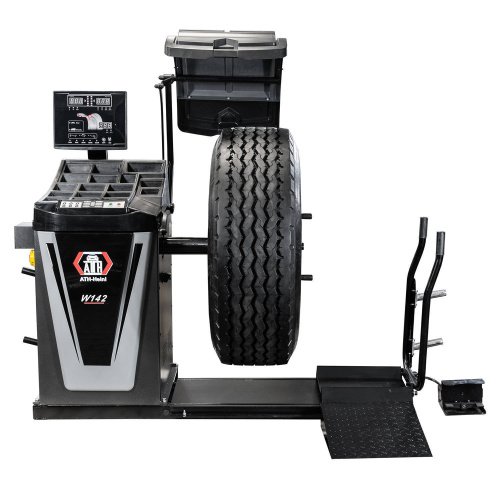

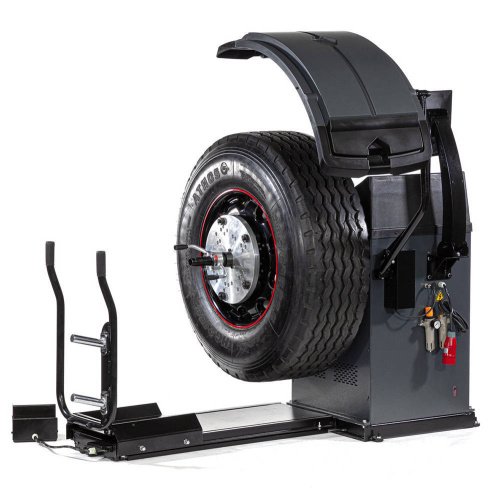

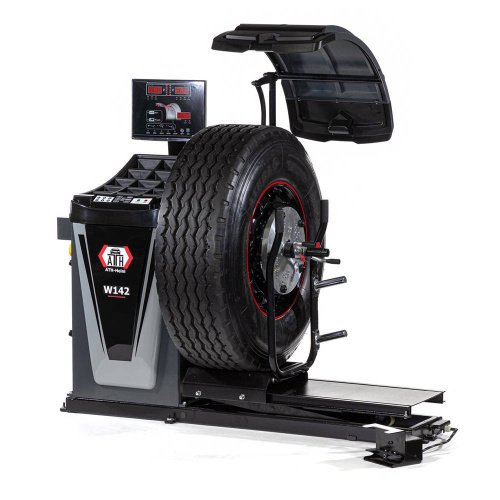

Cargo balancing machine ATH W142

Description

Professional Cargo Balancing Machine ATH W142 - Germany Suitable for car, truck, bus and commercial vehicle wheels.

Semi-automatic balancing machine with automatic measurement of the distance and diameter of the disc, the width of the disc is entered manuallyHigh quality construction - no deformationMaterials are made using laser cutting and robotic weldingModern stylish design of the tire changer - powder coating.

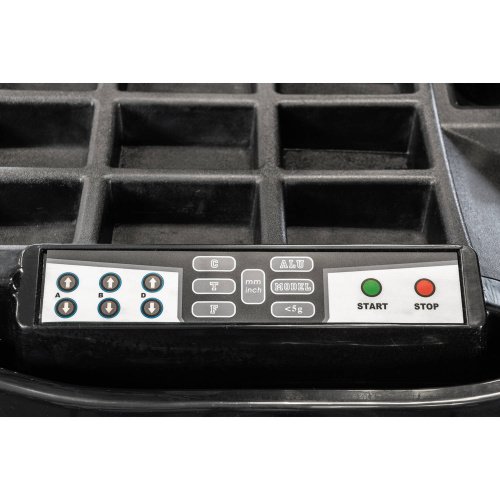

Ergonomic front panel with control buttons, niches for weights and tools Convenient large monitor with LED backlight Holders for clamping cones are located on the left side of the machine Pneumatic wheel lift allows you to effortlessly install the wheel on the shaft The lift is controlled using an external pedal.

The work of the balancing machine is controlled by a high-performance microprocessor, which ensures maximum balancing accuracy. Setting weights using a laser ruler and LED backlight A very large selection of balancing programs for working with different types of wheels and disks (static, dynamic, work with light alloy wheels in truck or car mode).

Large LED monitor

Automatic entry of distance and disc diameter

Sharp red line at weight position

Pneumatic Wheel Lift

The START-STOP function - automatic start of the balancing process by pressing the button or when the protective cover is lowered (if this function is enabled) Automatic stop of the shaft rotation by pressing the button or when the protective cover is raised, using a pneumatic brake.

The SPLIT function - ATH W142 balancing machine has a built-in weight separation function (hidden weight function) This function allows the balancing to determine the location of the weights behind the spokes, by dividing one large weight into two smaller ones .

Balancing stand dimensions
