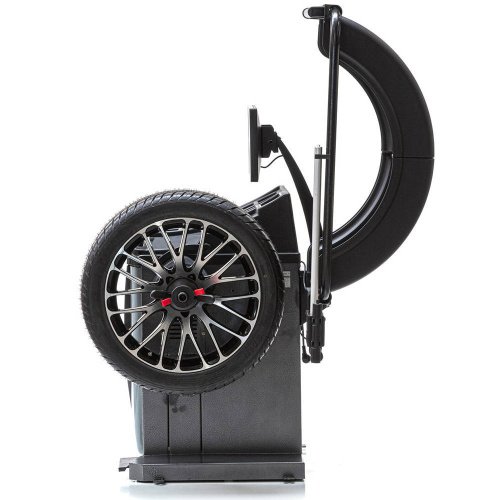

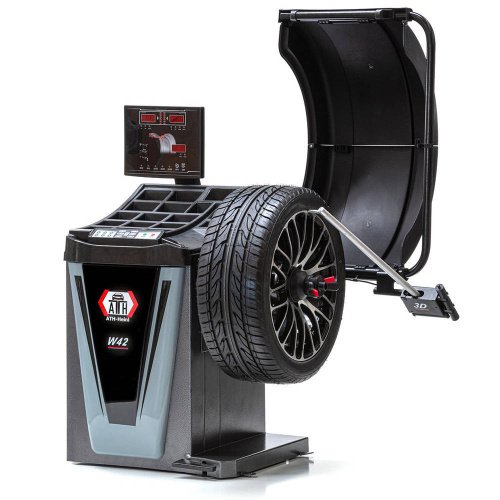

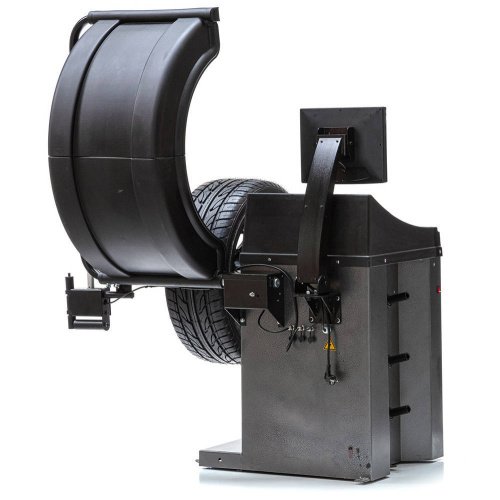

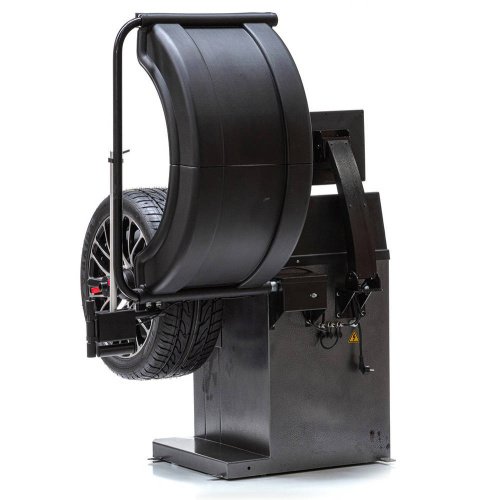

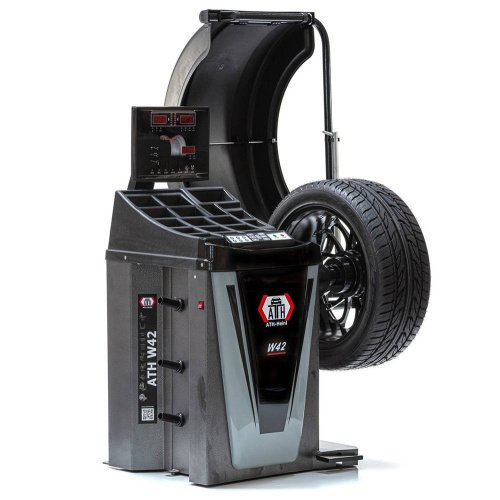

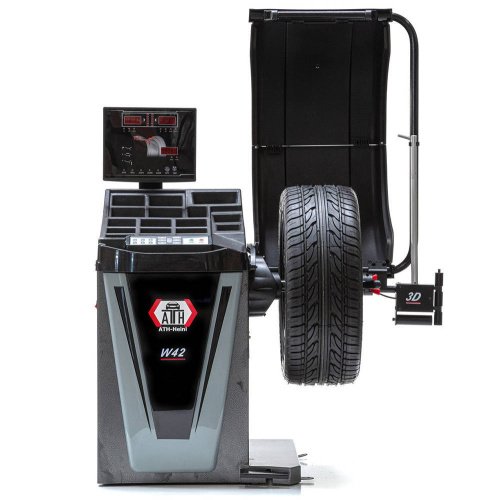

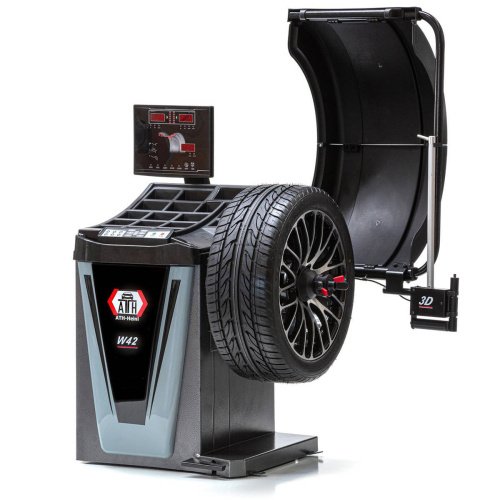

Balancing machine 3D ATH W42 3D

Description

ATH W42 LED 3D balancing features

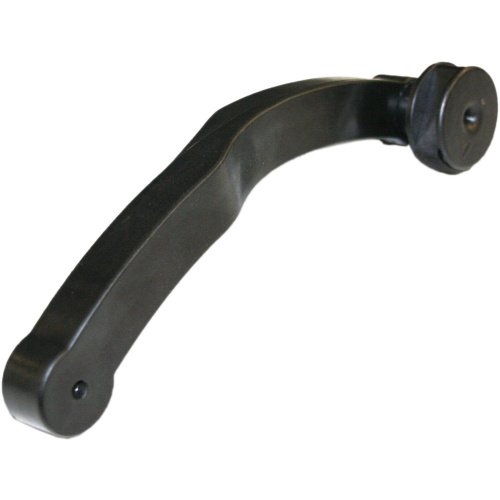

The ATH W42 LED 3D balancing machine is equipped with an external electronic ruler for measuring wheel parameters, which greatly speeds up the process of wheel balancing.

• 3D function: (automatic measurement of rim diameter, distance to load anchor point and rim width).
• Improved design, large convenient desktop for weights and tools.
• Large wheel guard
• Automatic start-stop rotation of the shaft when the protective cover is lowered.
• The fast and precise operation of the machine is controlled by a microprocessor.
• A simple control program.
• Brake pedal to fix the wheel in place of the weight.
• A complete set of wheel balancing programs.
• Integrated disc lighting.
• Digital (LED) and optical (laser line) indicator of the load securing position.
• Static and dynamic balancing of all types of wheels.
• 5 special programs for alloy wheels, 2 ALU programs for PAX wheels.

Balancer functions:

DYN - Dynamic mode (standard) : This function detects the lateral and radial runout of light alloy and steel rims. The balance weights will be placed on the outer and inner side of the balance wheel disc.

TA - Static mode: This function defines the radial runout of the steel discs. The balancing weights will be placed in the center position of the disc.

ALU-1 - This function defines lateral and radial runout of light alloy rimsThe balance weights will be located at the indicated points.

ALU-2 - This function defines lateral and radial runout of light alloy rimsThe balance weights will be located at the indicated points.

ALUS - This function defines the side and radial runout of alloy wheels The balancing weights will be located at the points defined by the operator.

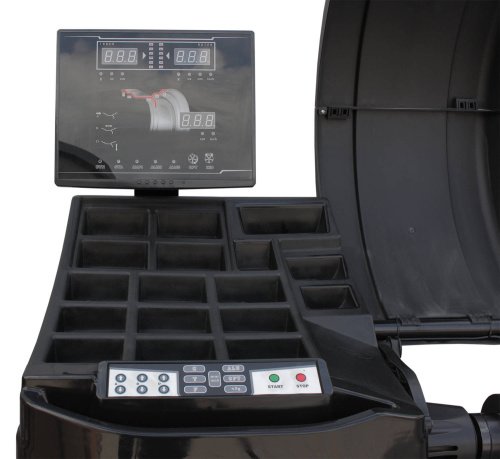

Large LED display and easy operation

Automatic input of all disk parameters

Wheel fixing brake pedal

Disc illumination and laser weight indicator

Program set

• Program for separating the weights behind the spokes.
• Unbalance optimization program.
• 5 balancing programs for motorcycle wheels.
• Machine self-diagnosis and self-calibration functions.
• SPLITTING program - distribution of weights behind the spokes.
• Motor drive with optimized rotation.
• Shaft and quick tightening nut diameter 40mm.

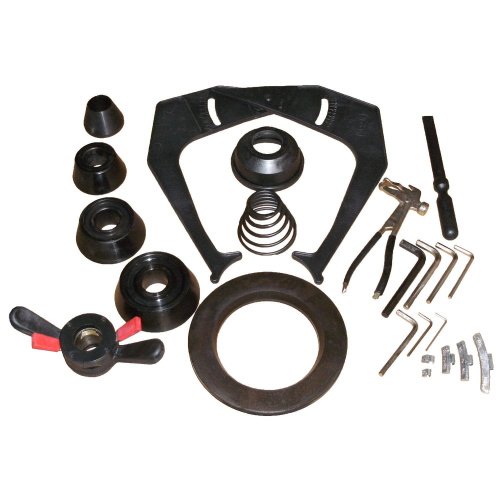

• Clamping cones 44-133 mm.

Balancing stand overall dimensions
