Alignment stand Well Kraft Fox 3D DT

Description

Innovative Well Kraft Fox 3D Wheel Alignment Stand for Pit Work

Features of the 3D Wheel Alignment Stand

• 3D visualization technology using two high-resolution cameras (10 megapixels) operating with SI (Scientific Image) technology and additional intense infrared illumination;
• Unique control software - “ALIGN+”;
• Calibration is not required;
• Regular updates of the vehicle database;
• Original AUTODATA vehicle database;
• The program automatically tracks wheel rotation during Caster measurement;
• Measurement of vehicle suspension geometry;
• Measurement of camber angle at zero toe;
• Quick Control function;
• Unique Data Manager software for monitoring workshop performance;
• Program for correcting the angles of two wheels, with only two front targets installed;
• Powerful computer with an efficient Intel Core i5 processor and installed Windows 10 operating system.



Quick Control Function
The unique Quick Control function allows the operator to perform quick measurements, significantly saving time and increasing service efficiency.



Data Manager Software
Unique Data Manager software for monitoring car workshop efficiency.



AUTODATA Car Database
AUTODATA car database with over 20,000 vehicles, including American and European ones.



Target for achieving on the wheel alignment stand
No electronic devices on the wheels.

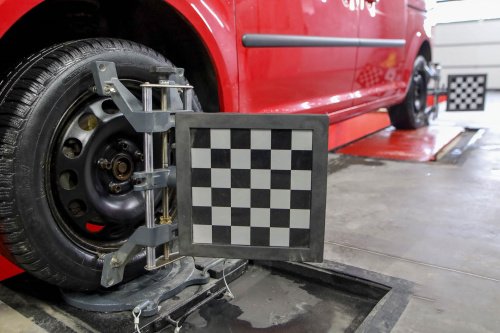

Universal Wheel Clamps
Universal four-point wheel clamps.



Tablet (optional)
Very convenient tablet device with Wi-Fi support for displaying wheel correction results and controlling the computer.

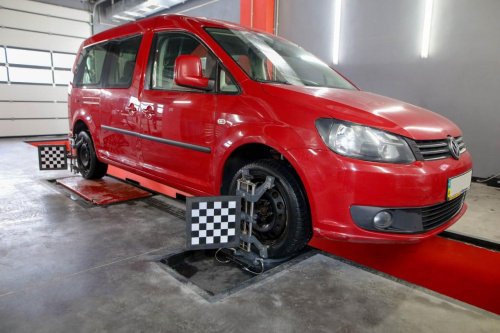

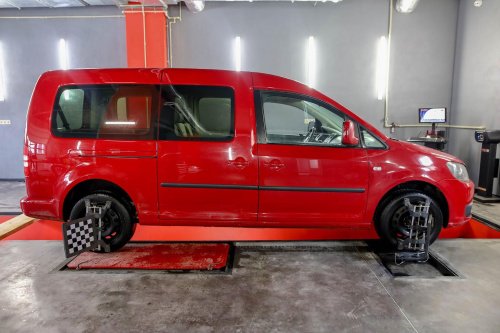

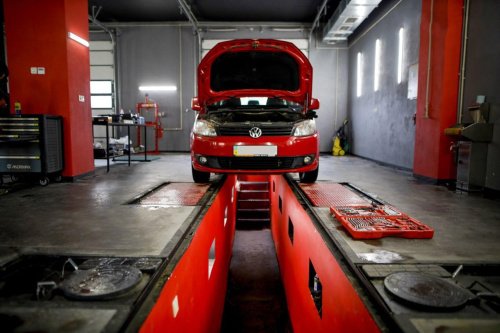

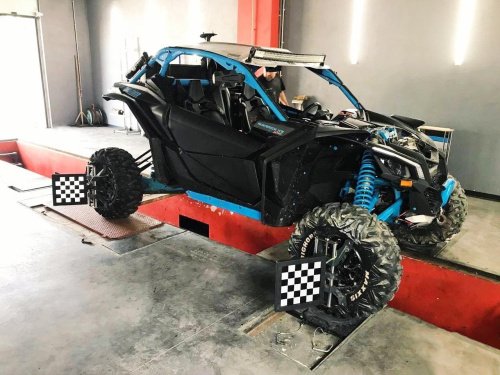

Recently Completed Projects





Procedure Steps



1. Pre-alignment check
2. Runout compensation – balancing
3. Left turn / Right turn
4. Adjustment results



Visual Adjustment Prompts



Adjustable Parameters in Real Time

Standard Accessories

  Targets - 4 pcs.

 Wheel Clamps (12″-24″) – 4 pcs.

  Turntables (2 t) – 2 pcs.

  Steering Wheel Holder – 1 pc.

  Brake Pedal Holder – 1 pc.

  Wheel Locks – 2 pcs.

Optional Accessories

  Printer (inkjet or laser) - 1 pc.

  Long Rear Sliding Plates - 2 pcs.

  Adapters for Wheel Clamps (10″-26″) - 16 pcs.

  Protective Wedges for Rims - 16 pcs.
