Cargo Stand Camber Well Kraft Jumbo 3D Super

Description

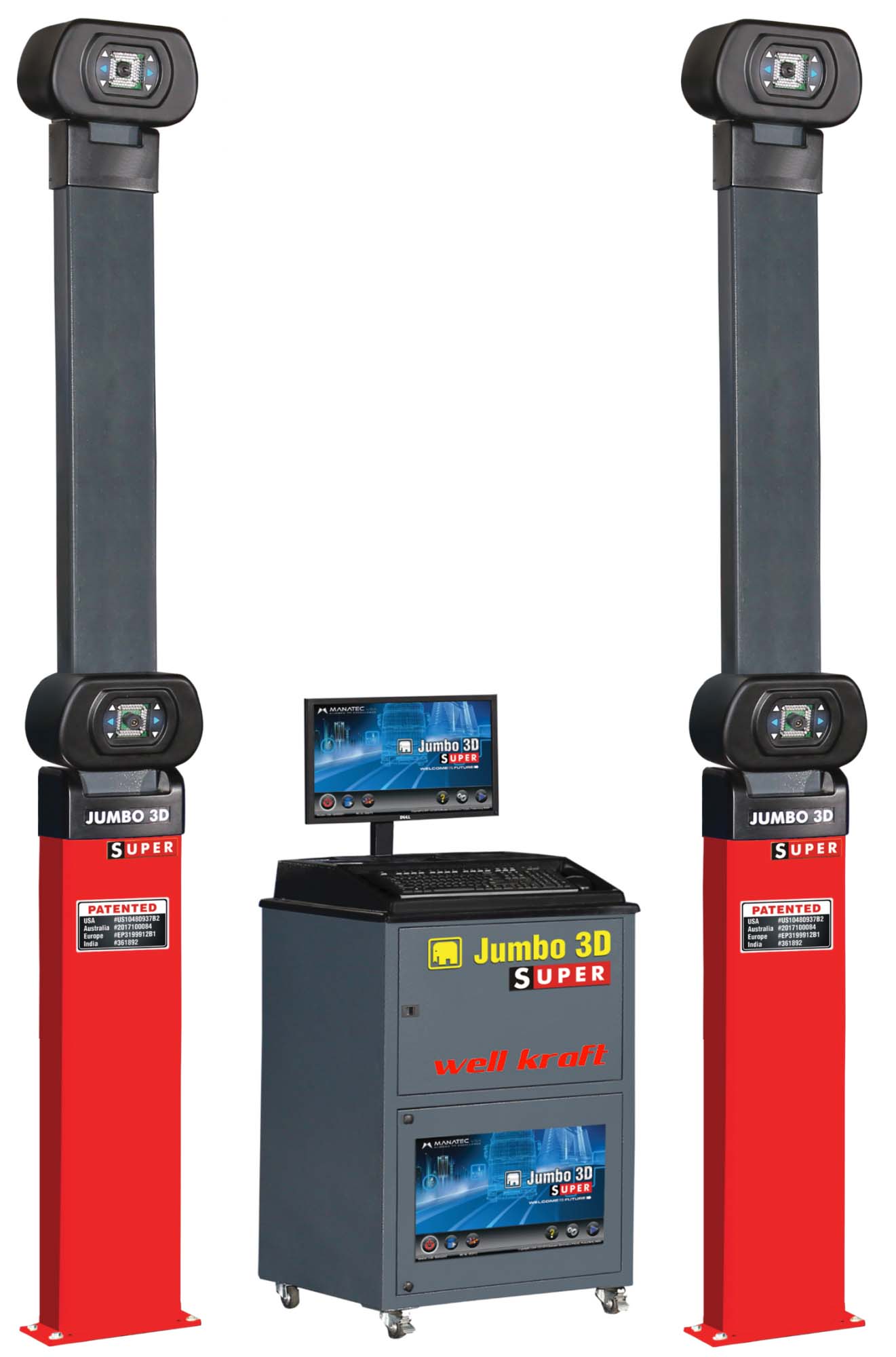

Features of the stand Jumbo 3D

• A unique, unified 3D wheel alignment stand for robots with buses, trailers, trailers and cars

• Choti-wheeled grips work with wheel discs up to 24" (option up to 30" )

• Passive reflectors without the content of electronic components, consisting of: flat targets with a gradient pattern, covered with a protective layer and a durable impact-resistant housing


• Simultaneous correction of 5 axes using 4 camerasand 10 targets

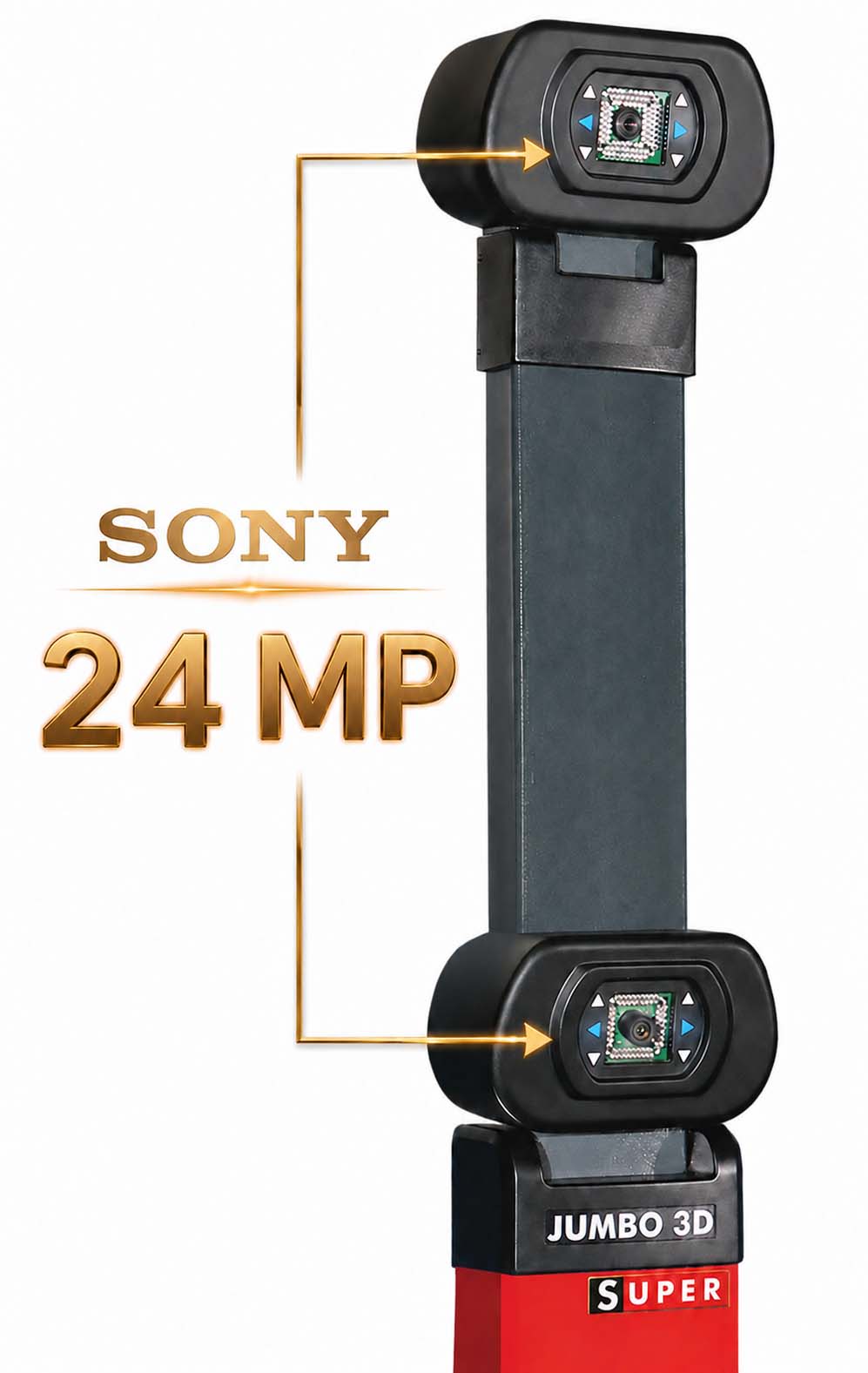

• High-performance SI (Scientific Imaging) camera and 3D Imaging technology for measuring angles using Align+ software

• Correction of camber angles, Caster, convergence, lines (angle) of movement, angle of the roll shoulder


• Automatic left and right turn tracking for Caster/Kingpin measurement, Caster amplitude of dual front axles

• Simultaneous run-out compensation (rolling) of all axles when the vehicle is moving Tie rod adjustment


• Data Manager software for storing correction results


• Self-diagnosis program for wheel alignment system

The stand provides the ability to work simultaneously with 5 axes! The range of the cameras is up to 19m!

Wheel clips

These are self-centering wheel grippers with a quick jig for attaching targets to rimsThe wheel gripper is a universal design to fit light truck wheels from 12" to 24" in diameter on the rimsInternal holes designed to accept rims from 12" to 20" and outer holes are 20" to 24" Wheel clamps are supplied with adapters for use with locking pins for mounting on bus wheels (front axle), non-driving tag axle and trailing rear axle

Turntables (7t.)

The turntable consists of a freely rotating plate with a load capacity of 7 tons each, which is suitable for working with cargo vehicles. The front wheels of the controlled vehicle must rest on these plates. The rotating plate helps to avoid wheel friction and relax the swivel to its original state. Locking pins are provided. to stop traffic when the car is parked on the circle Locking pins must be removed when taking measurements Turning circles provide the left and right turn needed to measure Caster and Kingpin angles

Targets

The target has a patterned IR reflective medium to reflect incident rays from the camera. A spirit level is provided on each target to ensure it is level when the target is mounted on a wheel grip

Dimensions of the pit for wheel alignment

The inspection pit shown here is designed for wheel alignment of unloaded vehicles

Approved and Recommended

Cargo camber stand Well Kraft Jumbo 3D Super recommended by: TATA Motors, Mahindra, Volvo, MICHELIN

Package

Bus adapter
(P8609)

	Description	Super 6A	Super 5A	Super 3A
	Wheel clamps (12”-24”)	12	10	6
	targets	12	10	6
	Turntables (7 tons) with spacers	4	4	2
	Brake pedal depressor	1	1	1
	Steering wheel lock	1	1	1

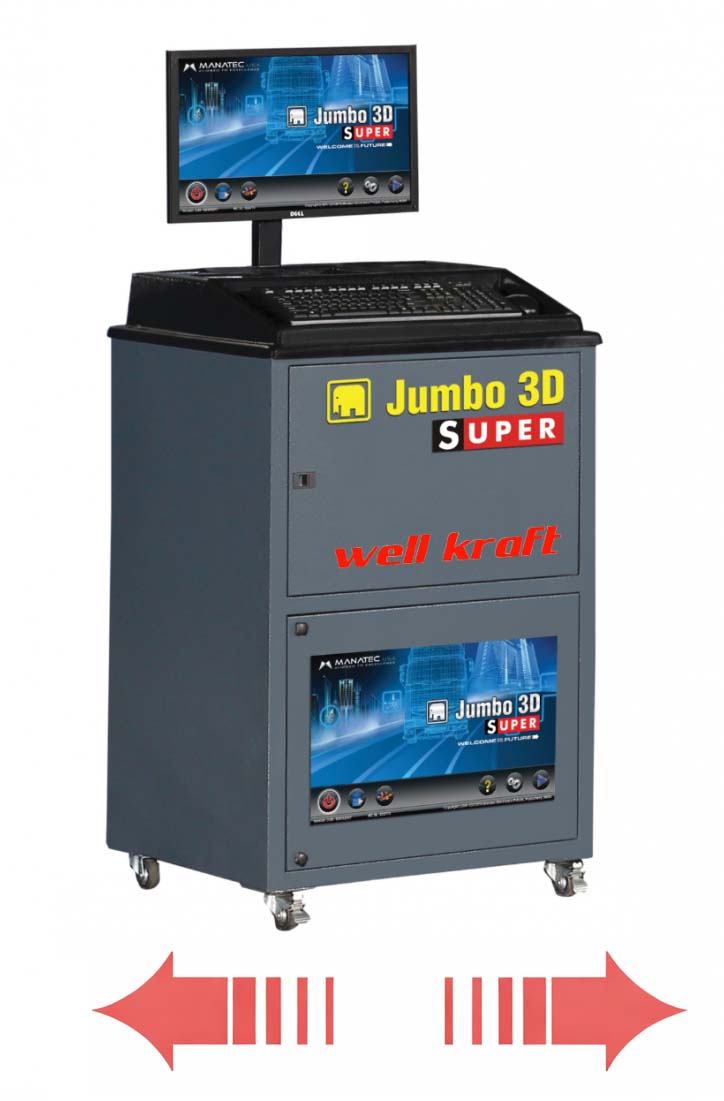

	Performance PC (Intel Core i7) with Windows 10 IoT	1	1	1
	Main LED monitor 21.5" HDMI/DP interface	1	1	1
	Additional monitor 21.5" HDMI/DP interface	1	1	1
	Wheel chock	2	2	2
	Software for freight transport	1	1	1
	Pair of rack holders (clips and targets)	4 racks 3 targets each on each	2 stands 2 targets each + 2 racks 3 targets each	2 racks 3 targets each on each
	Steering wheel lock for light trucks	1	1	1
	Brake pedal depressor for light trucks	1	1	1
	Extension sleeve for targets length 150mm. (applies to vehicles small gauge)	6	6	6
	Claws for chamber chamber and tubeless kwheels (X0845)	48	40	24

Accessories

Claws for non-standard discs
configurations (Fancy disc) and
Low Profile Drives (Run Flat)
(X0844)
48 40 24 Claw for double discs
(X0848)
48 40
24
Claw for
low profile
steel rims
(X0899) 48 40 24 Claws for wheels with
tires with protection
disk
(X0849)
48 40 24 Extension
wheel clamps
(A8775)

	Description	Super 6A	Super 5A	Super 3A
	Extension adapter wheel clamps, for wheels up to 30"	48	40	24
	Driving platforms	6	6	2
	target holder wheel alignment procedures relative to central axis frame	1	1	1
	Measuring ruler to measure the gap between wheel and vehicle frame	1	1	1
	Ruler for measuring wheel diameter	1	1	1
	Claw for steel rims (X0843)	48	40	24
	Chain block with ratchet for adjustment axes	1	1	1

Set for cars (Option)

	Description	Quantity
	Claws	16
	Passenger car software	1
	Wheel chock	2
