Body slipway Well Kraft CRE-900A

Name: Body slipway Well Kraft CRE-900A
Brand: Well Kraft
SKU: 005290
Availability: OutOfStock

vendor code: 005290

On order

Our managers will contact you and clarify the terms of the order

Specifications

Platform length, mm

4200

Platform width, mm

1000

Air pressure, bar

6.9

Platform height, mm

280-1300

All characteristics

You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.

Description

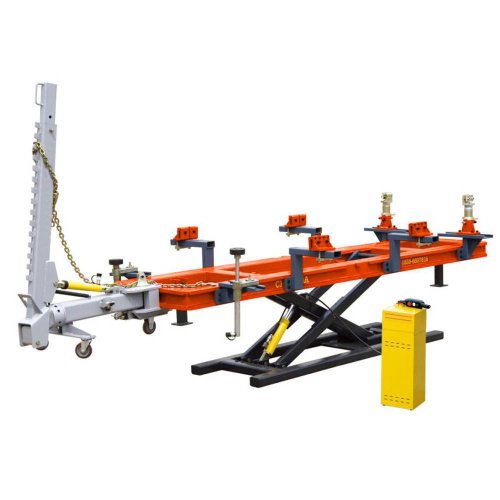

Well Kraft CRE-900A car body straightening cradle with scissor lift

A system for leveling work on a car body with a small working platform. The electro-hydraulic lifting mechanism allows you to adjust the platform in height from 280mm to 1300mm. The hydraulic exhaust column moves freely around the perimeter of the platform. The hydraulic cylinder transmits force in a vertical plane, which allows you to maximize the efficiency of work. The robust and powerful hydraulic system generates a pulling force of up to 10 tons.

Allows you to correct misalignments, restore the positions of body control points, remove internal stresses from car body parts. The design of the clips allows you to quickly and securely fix the car on the platform. Remote control console with electro-hydraulic unit, provides convenient and precise control of the slipway.

*The Well Kraft CRE-900A body straightening stand is designed in accordance with all American and European requirements and standards.

Specifications

vendor code	005290
Platform length, mm	4200
Platform width, mm	1000
Air pressure, bar	6.9
Platform height, mm	280-1300
Hydraulic system pressure, bar	280
Max. thrust force, N	98000
Weight, kg	1850
