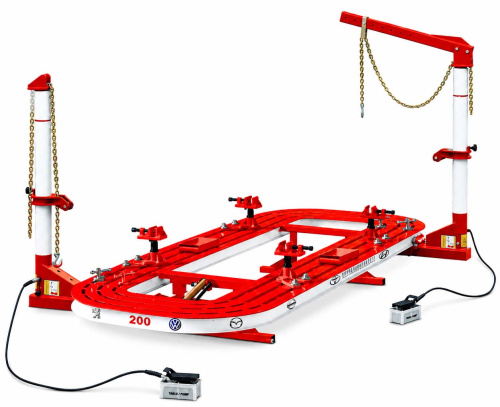

Platform slipway for body straightening Well Kraft 200

Description

Platform Body Straightening Bench Well Kraft 200 for Passenger Cars and Commercial Vehicles

A new generation system for car body straightening repair work. It can work with both domestic and imported vehicles. The system allows for straightening work of any complexity.

  Large set of tools for straightening of any complexity

  Universal patented clamp design

  Built-in platform tilt mechanism

Design Features

A platform-type straightening bench with a classic oval design (I-beam steel profile). The platform has a built-in tilt mechanism with a hydraulic cylinder for quick and convenient vehicle placement. Along the entire platform, there are three rows of grooves for attaching fixing clamps, which allow securing a body of any design. The platform has protruding edges on the outer and inner faces, which serve as rail supports for the power towers.

Two power towers with hydraulic drive and a pulling force of up to 10 tons (95000N). One of the towers is equipped with a beam that allows pulling upwards. The towers move freely around the platform, thereby providing a working area around the entire perimeter of the platform. The towers themselves rotate 360°. This design makes it possible to apply pulling force to any point of the car body.

 The special patented clamp design allows for reliable, accurate, and quick vehicle fixation.

 The three-dimensional measuring system simplifies the mechanic's work.

 The hydraulic system is designed with a safety margin, which extends the service life of the equipment.

Standard Equipment

Tilting platform (1pc)	Chain 3.5m with hook (2pcs)	Power tower 2.05m (1pc)	Power tower 1.90m (1pc)
Hydraulic pump (2pcs)	Universal clamps (4pcs)	Pulling bar (1pc)	Short chain 1m (1pc)
Drive-on ramps (2pcs)	Wrench (1pc)	Hydraulic hose with connector (3pcs)	Wheel dolly (2pcs)
Small clamp (1pc)	C-clamp (1pc)	Tool stand (1pc)	Hook for tool stand (16pcs)
O-clamp (1pc)	Small hook (1pc)	Twin claw clamp (1pc)	Steel rope (1pc)
Strut tower clamp (1pc)	Nylon strap (1pc)	Bolt clamp (1pc)	Chain connector (1pc)
Safety cable (1pc)	Segment wrench (1pc)	Mini clamp (1pc)	Double claw hook (1pc)
Pulling hook (1pc)	Chain lock (1pc)	Bending hook (1pc)
