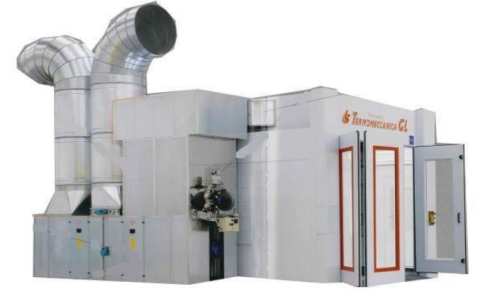

Spray booth Sprintek Termomeccanica

Description

Paint and Drying Booth SPRINTEK SPRAY BOOTH

Used for professional automotive paint repair. The design incorporates a semi-exhaust fan, allowing for highly effective cleaning of the booth from accumulated waste during painting operations.

Construction
The construction is a modular block with an adjustable frame, filled with 40 mm thick mineral wool, painted white. The booth comes with fire-resistant protective filters. Depending on its dimensions, the booth is equipped with a motor up to 11 kW. The system features an aggregate suction unit with full air recirculation. It is equipped with a 750 mm supply chamber and a 400 mm base. There is a diffuser in the static pressure chamber.

Equipped with a three-leaf entrance gate, one leaf of which can be used as a personnel door. All gate leaves feature large glass windows, allowing observation of the processes inside the booth. The ventilation and heating system consists of a stainless steel water heater and a Riello burner with a direct flame, boasting a capacity of 200,000 kcal/h.

The kit includes a thermoregulator with a sensor for temperature control inside the booth, as well as a safety thermostat (in case of temperature threshold overrun).

Filtration
Exhaust fumes are discharged through the rear of the booth. The air supply speed is 0.3 m/s. Exhaust air is removed using 2 rows of grilles with frames and paint filters. The ceiling filter is illuminated by two rows of fluorescent neon ceiling lights angled at 30°. The air regulation damper is manually adjusted for the spraying and baking phases.

Control Panel
The semi-automatic electrical control unit manages: light regulation, motor operation, and burner. The panel houses the booth's controls, indicator lights showing active modes or functions, a timer, a time counter, an emergency stop button, a main switch, and a mode selection button.

The kit includes:

• Generator
• Safety solenoid valve
• Minimum and maximum pressure relays (pressure sensors in case of malfunction)
• Safety thermostat (in case of temperature threshold overrun)
• Trolley with a hanger for the hood and 2 corner tables

Basic equipment:

Available options for the paint and drying booth:

The Italian company Termomeccanica is one of the leaders in the production of painting equipment for service stations and car repair shops. Their products are supplied to many countries around the world, thereby gaining the trust of buyers. Termomeccanica products are manufactured in accordance with modern quality standards and have all the necessary certificates.

Termomeccanica GL is an Italian company that has been supplying equipment for various paint shops since 2003. Repair lifts, body straightening benches, specialized posts for welding aluminum panels and paint preparation posts, color matching laboratory booths, spray booths (OSC), IR drying, paint gun washing units - Termomeccanica manufactures everything at the highest Italian level.

  Modern equipment

  Quality assembly of components

  More than 30 years of experience

The company has been producing painting equipment and accessories for over 30 years, thus having vast experience and trust from customers.

The use of robotic technology guarantees high precision in all production calculations, and also makes it possible to maximize the optimization and organization of the work process. All parts and components are manufactured right here, at the Termomeccanica factory. This guarantees the quality of assembly and high productivity of all equipment.
