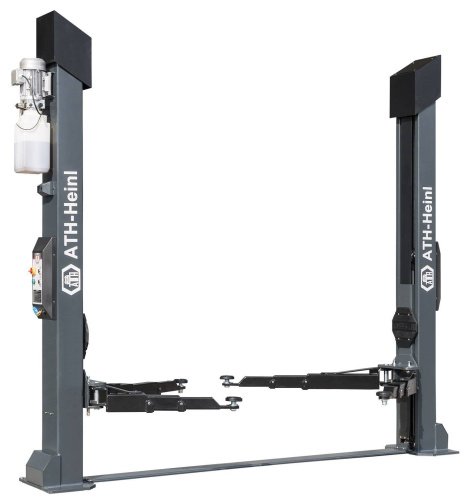

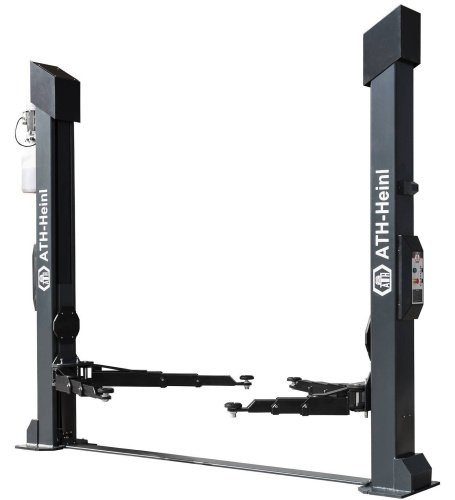

Two post lift 3.5t ATH Comfort Lift 2.35
Our qualified specialists will definitely help you.
Description
Electro-hydraulic lift ATH Comfort lift 2.35 of - load capacity up to 3500 kg with lower synchronization.
Benefits of ATH Comfort lift 2.35:

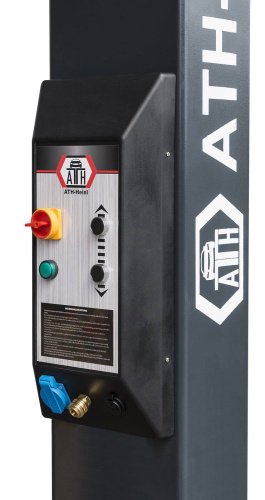

- Two control panels on both columns.

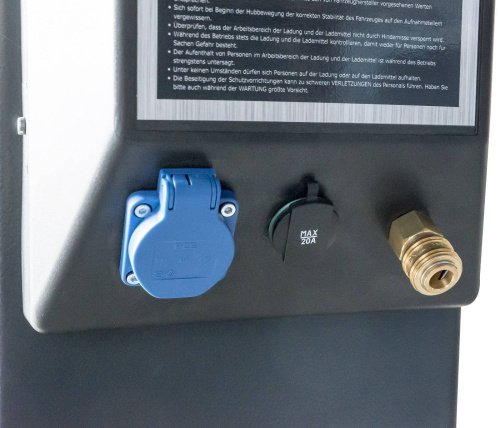

- "Energy-Set" on the main column (230V / 12V / compressed air), for connecting tools.
- Quick lifting and lowering thanks to a powerful hydraulic unit.

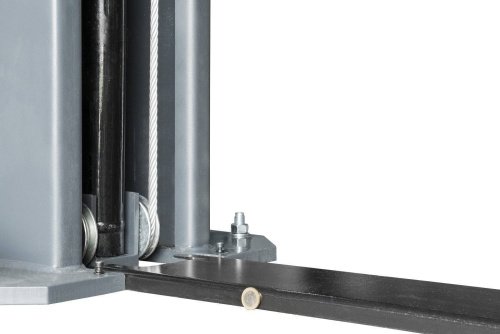

- Very low travel bar height (only 20 mm), for comfortable work in workshops.

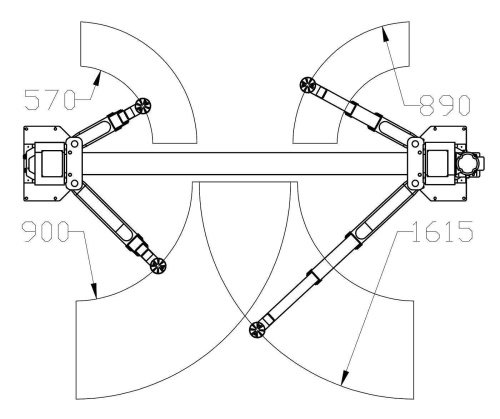

- Multifunctional working range thanks to three-section telescopic arms, asymmetrical (short-long) or symmetrical (long-long) option.

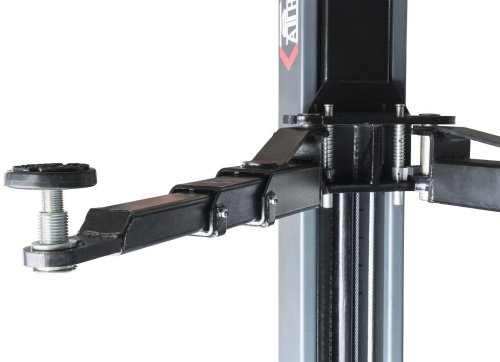

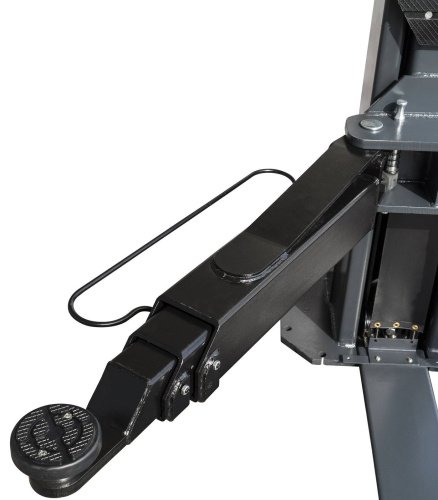

- Double telescopic arms (90 - 180 mm) with anti-twist protection.
- Automatic release of the lifting legs.
- Anthracite powder coated for extra protection against corrosion.

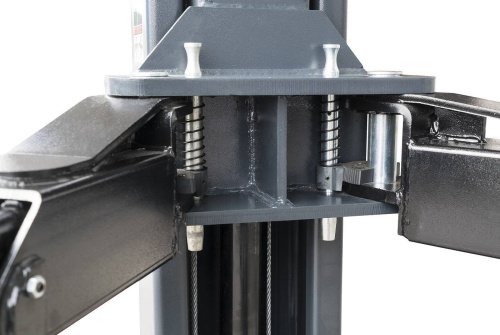

- Electromagnetic release of safety latches.
- Protection tape for protecting cylinders, chains and cables.
- Short or long lift arms can be supplied as an accessory.
- FREE-LINE concept 3.0t / 3.5t / 4t: Modification with optional accessories possible.
Specifications
|
vendor code
|
004556 |
|
Synchronization
|
Lower |
|
Load capacity, kg
|
3500 |
|
Lifting height, mm
|
2000 |
|
Ascent/descent time, sec
|
30 |
|
Supply voltage, V
|
380 |
|
Engine power, kW
|
3.0 |
|

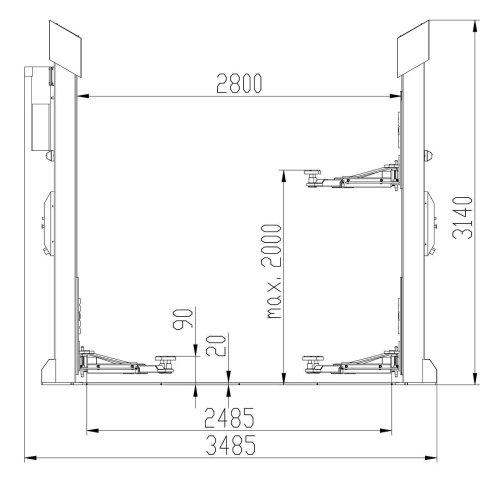

Distance between racks, mm
|
2500 |
|
Length of front levers, mm
|
565 |
|
Length of rear levers, mm
|
895 |
|
Lift type
|
Electro-hydraulic |
|
Total height of the product, mm
|
3140 |
|
The total width of the product, mm
|
3542 |
|
Weight, kg
|
675 |
|
Warranty, months
|
36 |
