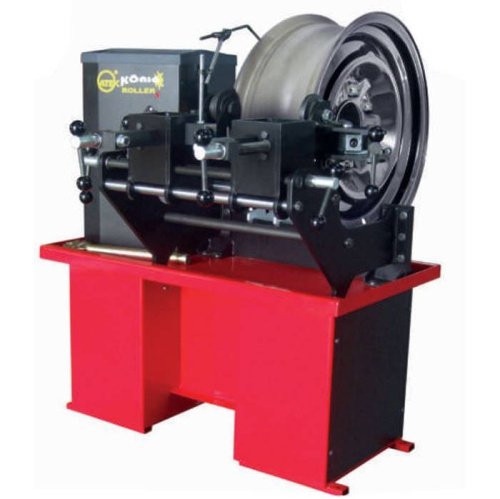

Atek Makina ROLLER S 78S 00 straightening and rolling machine

vendor code: 009200

19 350 zł

- +

Add to cart

Buy in 1 click

Specifications

Disc diameter, inch

10-19

Type

Mechanical

Supply voltage, V

400

Purpose

Steel wheels

All characteristics

You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.

Description

Atek Makina Roller S machine - designed for the restoration of steel (stamped) discs with a diameter of 10" to 19" inches.

Disk dressing is carried out by simultaneous or sequential double-sided rolling of the outer and inner parts of the disk with stationary and rotary rollers to restore the shelf and side flanges of stamped passenger car rims with a bore diameter of 10 to 19 inches, including rims of cars of the Gazelle family ".

Disk Leveler Features

Gear motor.
Rolling of car steel rims with metal thickness up to 3 mm.
Possibility of rolling on both sides of the rim at the same time.
The disc geometry is controlled by a special measuring probe with many mounting options.
Recovery of discs is possible without preheating.

Specifications

vendor code	009200
Disc diameter, inch	10-19
Type	Mechanical
Supply voltage, V	400
Purpose	Steel wheels
Rotation speed, rpm	98
Total height of the product, mm	1243
The total width of the product, mm	1120
Total length of the product, mm	1168
Weight, kg	300
