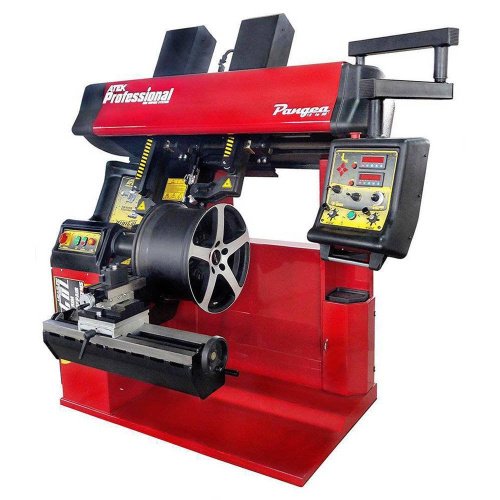

Atek Makina Pangea 36 00 wheel straightening machine

Description

Professional fully automatic disc leveler Pangea - designed to correct defects in car rims by force Restoration of the geometry of alloy cast and forged steel wheels diameter from 12 to 28 inchesAdjustable shaft speed 5 - 98 rpm.

Disk dressing is carried out by applying a hydraulic press with an electro-hydraulic drive to the damaged area of ​​the disk in a given direction and with a given force , in order to restore the initial geometry of the disc. This machine is equipped with two multifunctional straightening heads that adapt to the geometry of the disc, and can not only level any dents in the disc, but also eliminate complex deformations such as ellipse, figure eight, radial and axial beat.

Electronic measuring system provides fast and very accurate measurement of disc geometryUniversal ruler allows you to measure disc geometry in both vertical and horizontal planes.

The Pangea straightening machine is equipped with a moving rotary turning group (cutter ) with reduction system (gearbox), which allows processing the disc after straightening welding Allows you to remove excess metal (burrs) when finishing the disc Adjustment of an error - 0.1 mm.

Control Panel

Multifunctional straightening heads

Universal measuring ruler

Disk Leveler Features

• Electronic measuring ruler (vertical and horizontal planes).
• Two multifunctional straightening heads.
• Remote control.
• Voltage to control panel 24V (DC).
• Moving rotary turning group (cutter).
• Adjustable shaft speed
• You can optionally install a quick clamping system QuickClamp(optional).
