4 post lift 5.5t ATH Four Lift 55HAP
- Previous
- Next
vendor code:
014154
61 113 zł
-
+
Add to cart
Buy in 1 click
Specifications
Load capacity, kg
5500
Lifting height, mm
2045
Ascent/descent time, sec
45
Working height, mm
275
All characteristics
You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.
Our qualified specialists will definitely help you.
Description

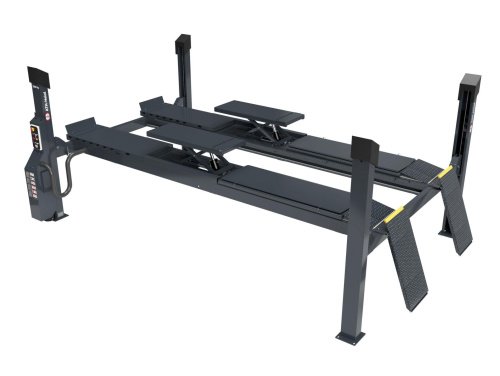

Four-Post Lift ATH Four Lift 55HAP with a Load Capacity of 5.5 tons and Wheel Alignment Platform with a Second-Level Lift
- Electro-hydraulic four-post lift with fast lifting system and load-dependent lowering feature

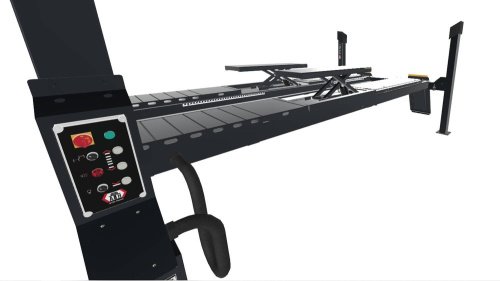

- Central control unit

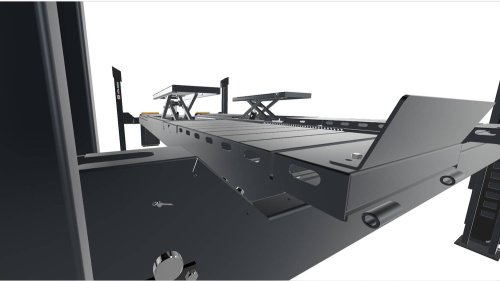

- Precisely leveled platform and guiding system
- Safety control: electropneumatic safety locks that automatically unlock during lifting and lowering
- Safety lock: ability to secure the load on the safety mechanism

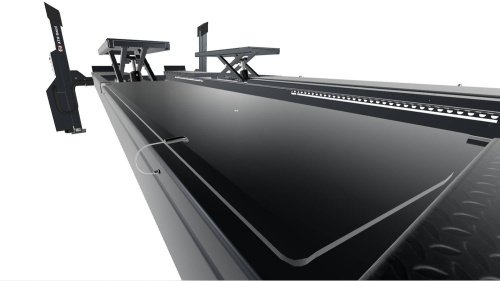

- Excellent platform protection made from special polymer and double powder coating

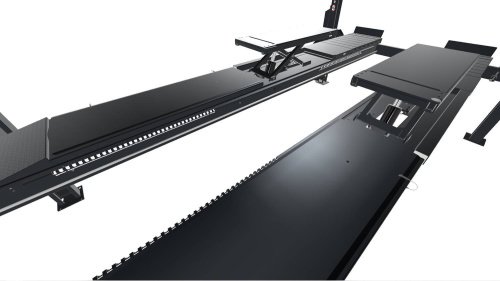

- Front recess for turntables, already installed pneumatically locked sliding platforms at the rear, and built-in central lifting scissors (load capacity of central lifting scissors: 3500 kg)
Specifications
|
vendor code
|
014154 |
|
Load capacity, kg
|
5500 |
|
Lifting height, mm
|
2045 |
|
Ascent/descent time, sec
|
45 |
|
Working height, mm
|
275 |
|
Supply voltage, V
|
380 |
|
Engine power, kW
|
4 |
|
Distance between platforms, mm
|
1010 |
|
Platform length, mm
|
5600 |
|
Platform width, mm
|
650 |
|
Lift type
|
Electro-hydraulic |
|
Foundation depth, mm
|
200 |
|
The total width of the product, mm
|
3750 |
|
Total length of the product, mm
|
6620 |
|
Weight, kg
|
2580 |
