ATH Single Lift 35M
Our qualified specialists will definitely help you.
Description

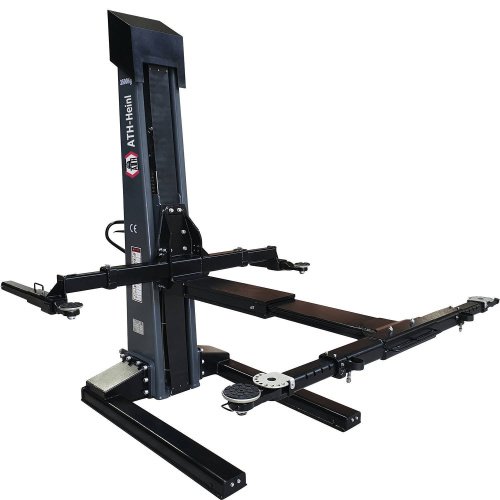

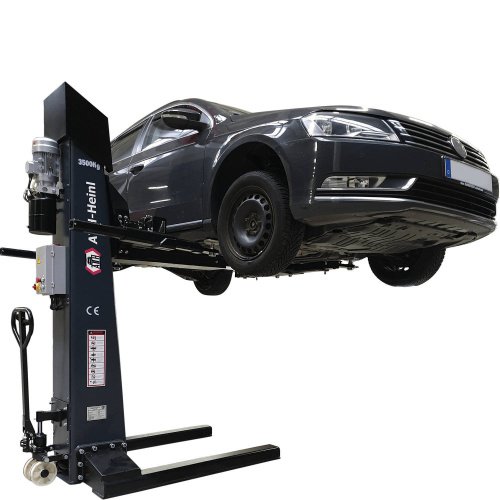

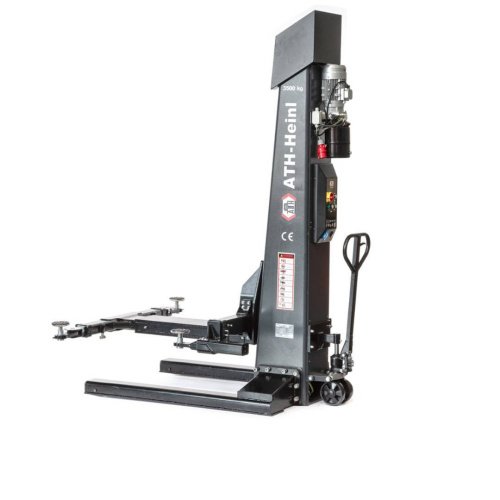

Single-column mobile lift from German manufacturer ATH with a capacity of 2.5 tons
Electro-hydraulic single-column lift with built-in wheels for mobility around the auto workshop. Manufactured to high standards using robotic technology, ensuring reliability and precision.

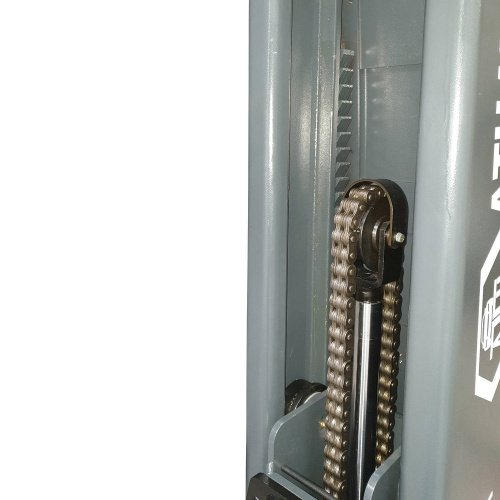

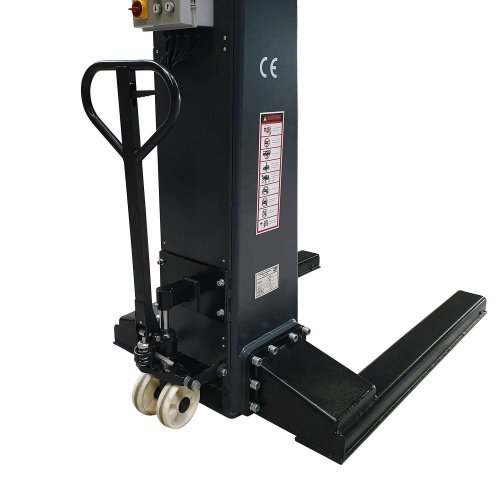

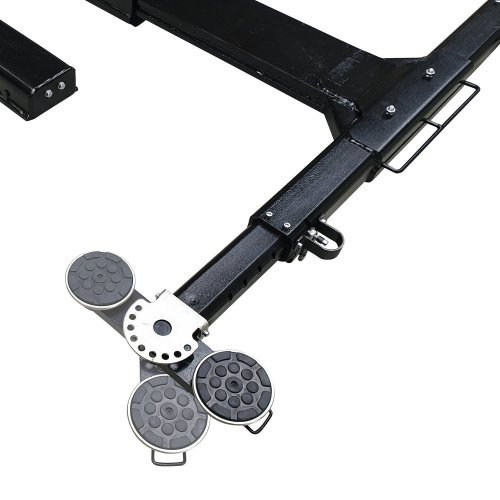

The lift features a strong reinforced column and an "N" shaped base. Retractable telescopic supports allow flexible adjustment of the lift to fit the vehicle's base. Easy side access to the vehicle due to the single column design.

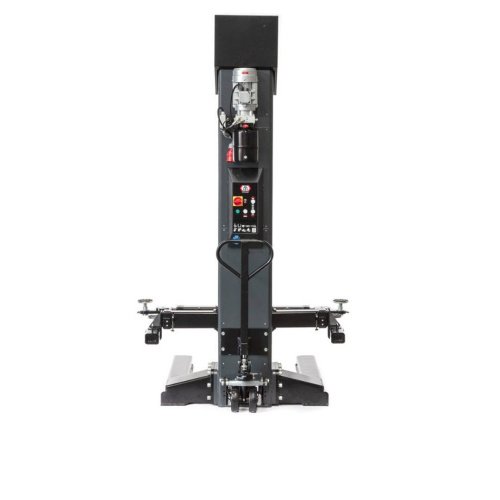

Lifting and lowering are performed using control buttons on the control panel. The ATH Single Lift 35M is equipped with an automatic electromagnetic safety system. Emergency lowering in case of malfunction or power failure.
The lift has a stylish design and occupies minimal space. It comes in gray and black colors, painted with a powder coating method to prevent corrosion.
Specifications
vendor code
|
009553 |
Load capacity, kg
|
3500 |
Lifting height, mm
|
1853 |
Ascent/descent time, sec
|
40 |
Working height, mm
|
110 |
Supply voltage, V
|
380 |
Engine power, kW
|
2.6 |
Oil quantity, l
|
6 |
Total height of the product, mm
|
2700 |
The total width of the product, mm
|
2195 |
Total length of the product, mm
|
2080 |
Weight, kg
|
1300 |
Warranty, months
|
36 |
