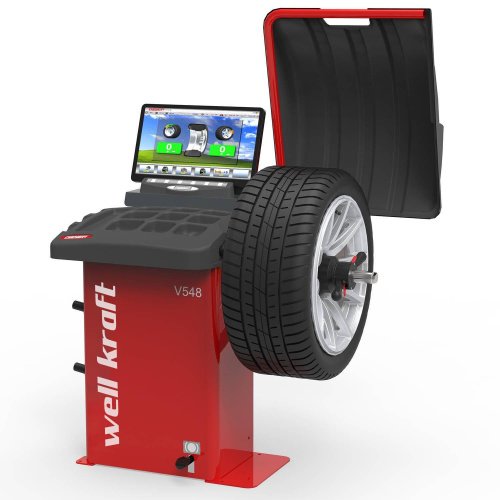

Balancing machine 3D Fasep V548 Nuvi with WOW and MARS functions

Stand version

Е667.021
E667.022
E667.023

Program level

Base

Engine management

Disc clamp

Manual

External ruler

laser pointer

Model

G548G6K.ULK
V548.G6.K.U
V548.G6.K

Specifications

Max. wheel diameter, inch

Noise level, dB

Max. wheel weight, kg

Rotation speed, rpm

All characteristics

You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.

Description

3D Fasep V548 Nuvi balancer from Videotronic line with WOW and MARS functions

Balancer V548 Nuvi Videotronic series, based on Windows CE operating system > together with the latest electronic engine management system G4.EasyThe operator can easily control all processes using the 19" monitor The interface is pleasant to use and very simple.

Design features of Fasep balancing machines

Exclusive IFS construction
Perfect alignment of the wheel relative to the shaft, the reference accuracy of unbalance removal.

Three-sensor VQI
Fasep is the only manufacturer in the world to use three ultra-sensitive imbalance sensors.

16 bit processor
Thanks to a 16-bit processor, the bench automatically selects the balancing modes and load securing points (Autoselect).

Low speed shaft
98 rpm - 4 times longer service life compared to other stands, where the shaft rotation speed is 200-300 rpm.

Shaft and nut - Haweka
All balancers have a Haweka shaft and nut.

MARS and WOW functions
WOW - freight savings
MARS - optimal placement of the adhesive weight.

Features and features of the V548 Nuvi balancer

Function	Description	E667.020	E667.018	E667.021
	Laser pointer - the exact location of the weight is indicated by a red dot, the area is clearly visible and allows you to accurately, very accurately and evenly attach the adhesive weight, without an angle of inclination and without shifting even by a few millimeters.
	3D balancing - automatic input of disk parameters and selection of balancing mode (ultrasonic ruler)
	Stop-On-Top - at the end of the measuring cycle, the wheel stops at the load attachment point for 12 hours.
	WOW - weight savings (reducing the cost of balancing by reducing the amount of weights needed to balance the wheel).
	MARS - optimal placement of adhesive cargo The function of automatic minimization of residual static unbalance, without additional effort on the part of the operator.
	SPLIT - hidden weights, a function that allows you to separate and hide the weights behind the disc spokes.
	Statistics - statistics on the work performed (total number of shaft revolutions, % of successful operations, % for each wheel diameter).
	FCC - the ability to check the calibration of the stand in a few seconds.
	ALU-S Electronic - automatic entry of measurements and determination of the exact position of the self-adhesive weight, which must be installed on an aluminum disk.
	Information Center - displays the technical configuration and status of the sensors, as well as allows you to customize and personalize the work of the stand.
	Autodiagnostics - automatic detection of errors and breakdowns of the stand during operation.
	MOTO - allows you to qualitatively balance the wheels of motorcycles on a conventional stand for balancing the wheels of cars.
	Optimization - determination of the optimal position of the tire relative to the disk.
	Disc runout - checks the radial displacement of the disk for bends and deformations.
	Planarity - analysis of the axial displacement of the disk in the horizontal (figure eight definition).
	Automatic Flange Calibration - automatic imbalance compensation for both new and used adapters.
	ALU-6H - load for 6 o'clock, the possibility of choosing the place of securing the load from below at "18:00" hours.
	ALU-MAT - a program for working with different types of cargo alloys.
	ALU-DIM - work with adhesive weights of different widths (12, 15,19).
	APS (Automatic Positioning System) - automatically scrolls and positions the wheel to the place where you want to attach the load (only available on models with a laser).
	Fast - fast balancing mode, significantly increases the speed of balancing, especially effective during peak hours when you need to skip a large flow of clients.
	DUO Operator - allows two operators to work with the machine at the same time, which significantly affects the throughput of the car service.
	Autoselect - the stand automatically determines and selects the balancing mode after measuring the disk parameters.

- enabled - option - not included

FASEP has completely different views on accuracy, and they are the only ones who have developed and successfully implemented balancing with 16-bit technology That's exactly why the balancing equipment from FASEP was not only homologated by well-known brands, but also approved and approved for use in NATO-OTAN structures.

Standard equipment

Quick Nut	Tire pliers	Set of cones Ø42-98 mm (3pcs)	Calipers

Shaft Ø40 mm	Open-end wrench	Calibration weight	Set of anchors (4pcs)

Specifications

vendor code	012055
Max. wheel diameter, inch	34
Noise level, dB	70
Max. wheel weight, kg	75
Rotation speed, rpm	98
Measurement time, sec	8.
Disc diameter, inch	10-26
Disc width, inch	16
Tolerance, gr	1
Supply voltage, V	230
Purpose	Легковой
Total height of the product, mm	1480
The total width of the product, mm	1160
Total length of the product, mm	800
