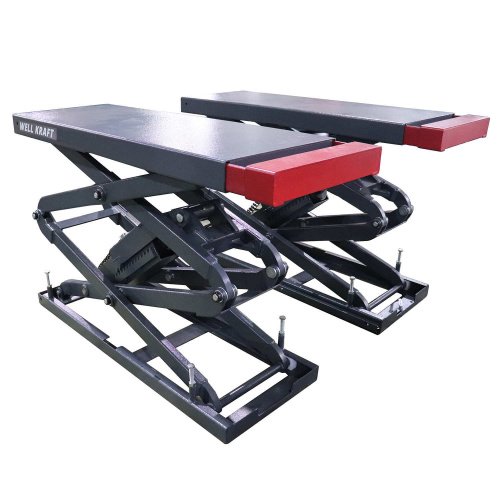

Double-scissor lift 3-3.5t Well Kraft MS
Hit
from 10 700 zł
load capacity
- 3t
- 3.5t
Supply voltage
- 400 V
- 230 V
Lift version
- 301MS
Specifications
Lift type
Electrohydraulic
Warranty, months
36
You can ask any question you are interested in about the product or the work of the store.
Our qualified specialists will definitely help you.
Our qualified specialists will definitely help you.
Description
Well Kraft 301MS/305MS scissor lift — 3 t or 3.5 t capacity, in-floor installation version
Electro-hydraulic scissor lift — in-floor installation version. A hydraulic cylinder is installed under each platform, ensuring smooth and fast vehicle lifting.
Key features of Well Kraft 301MS/305MS
- Safety system with mechanical locking on stops.
- Overload protection, upper and lower lifting/lowering limiters.
- Pneumatic release of the locks.
- Platforms are length-adjustable thanks to the extendable section.
- The remote control unit can be placed in any convenient location.

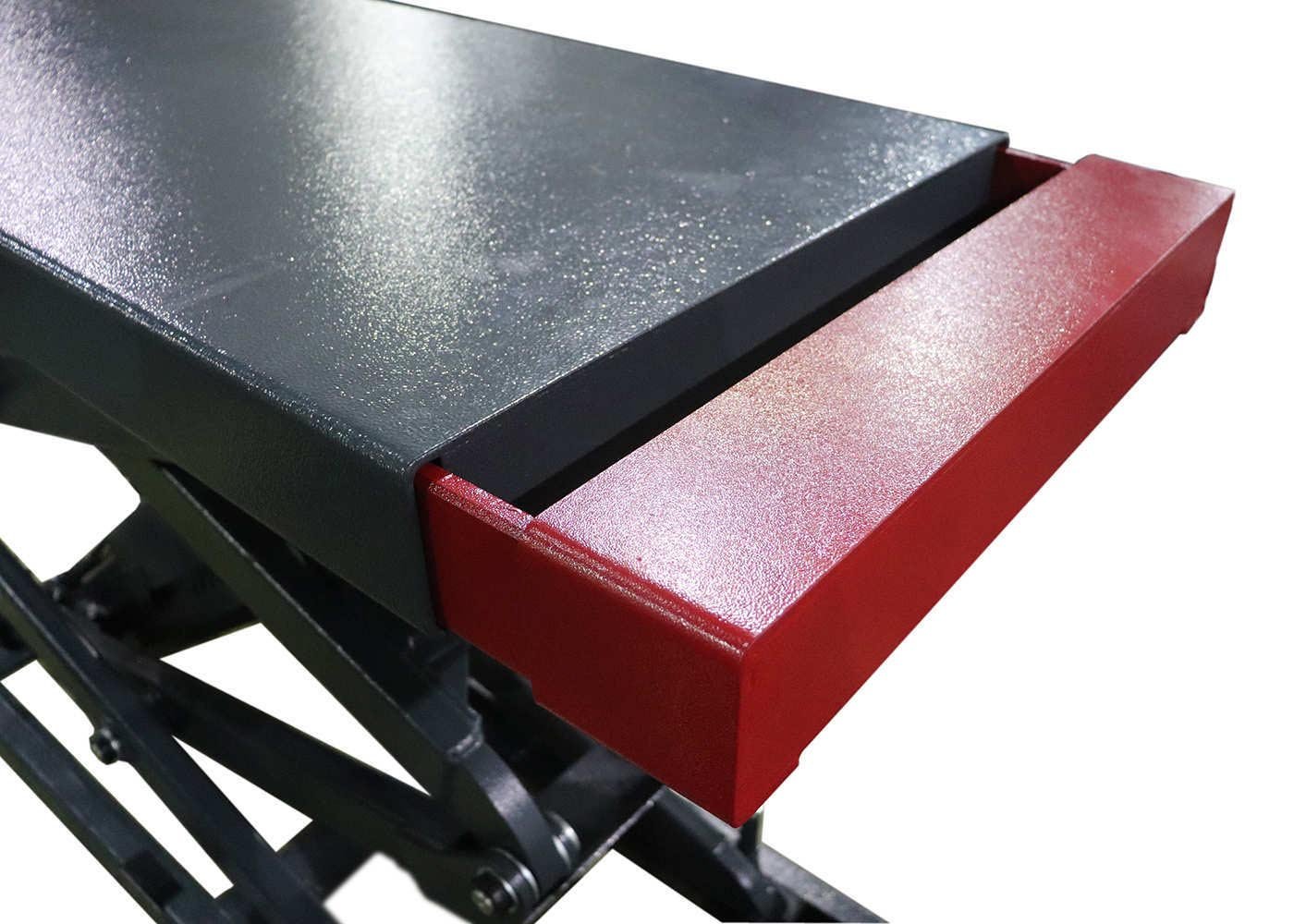

Extendable platforms

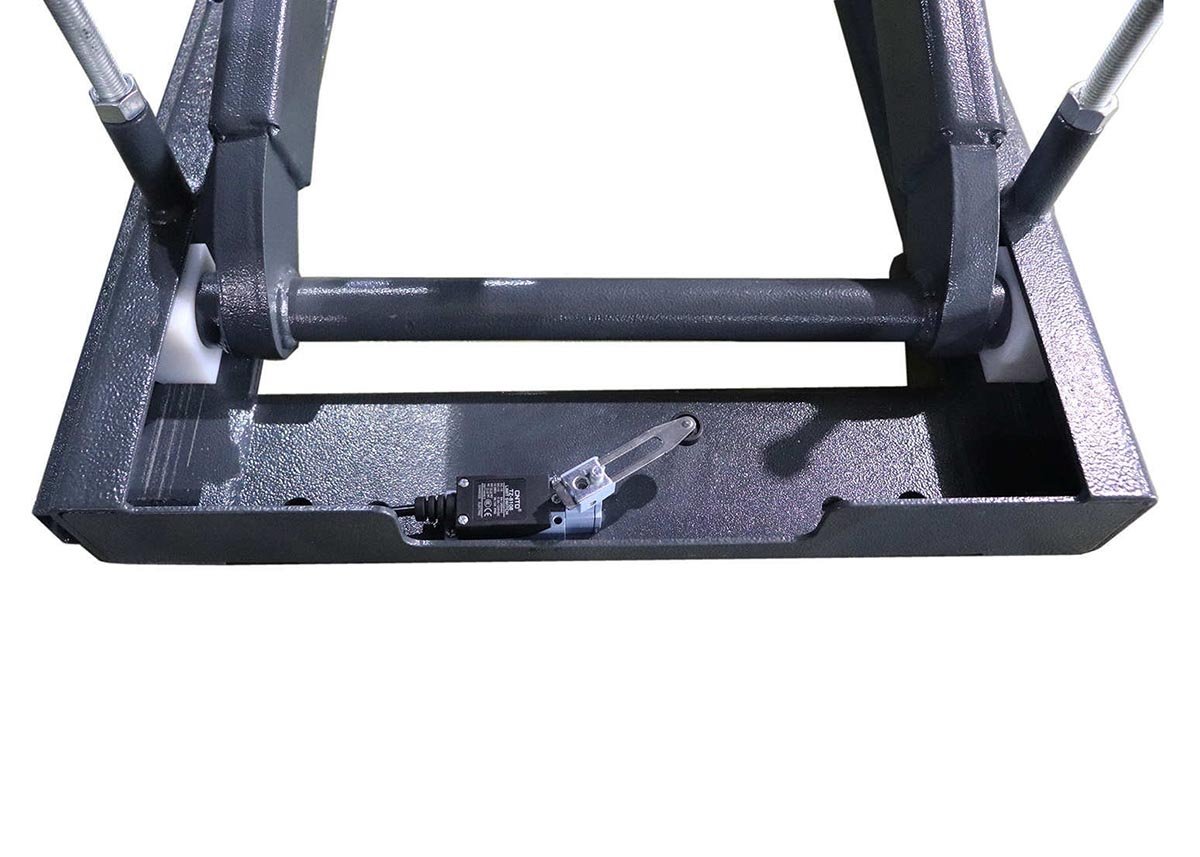

Lifting/lowering limiters

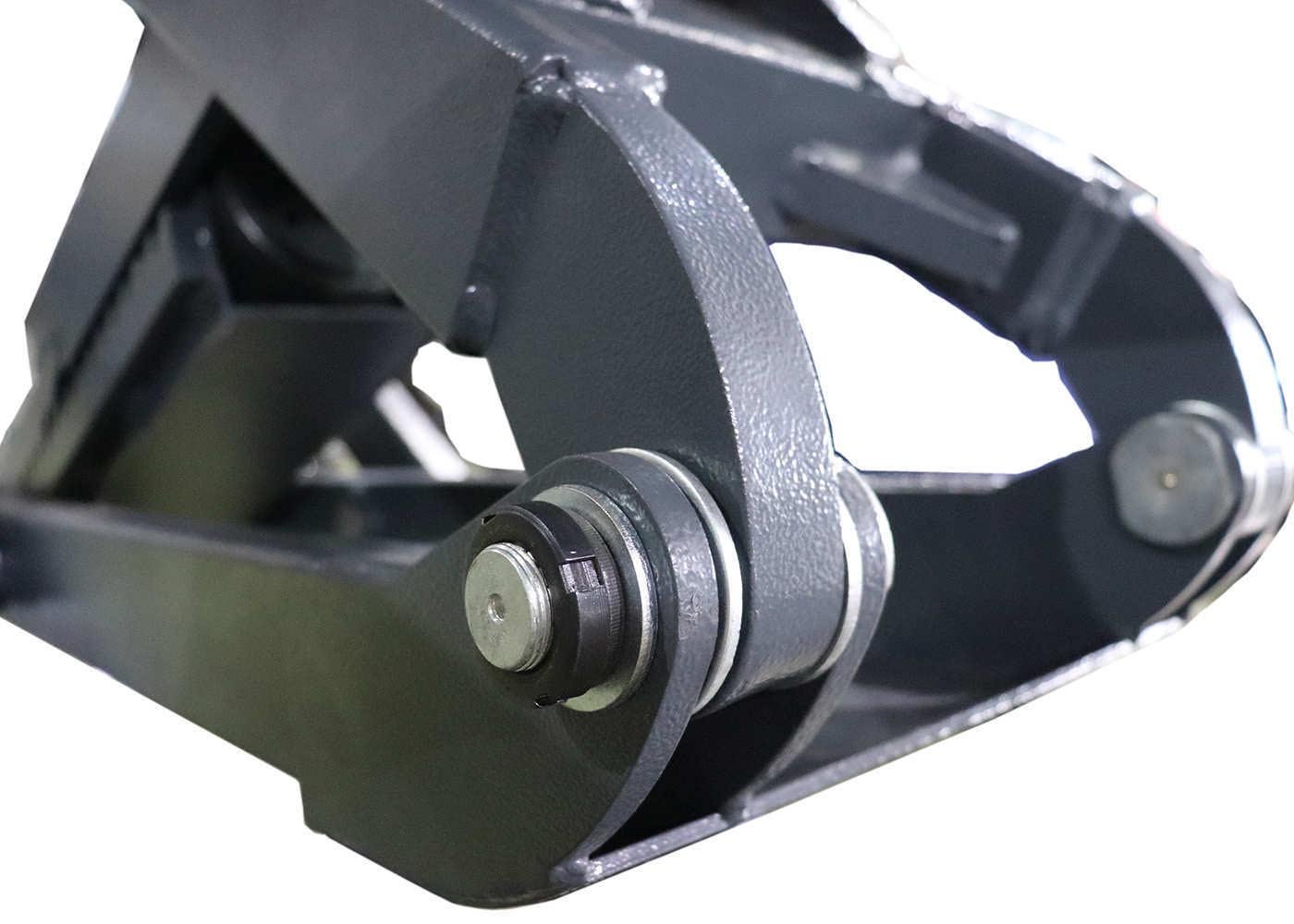

Strong and reliable scissor structure

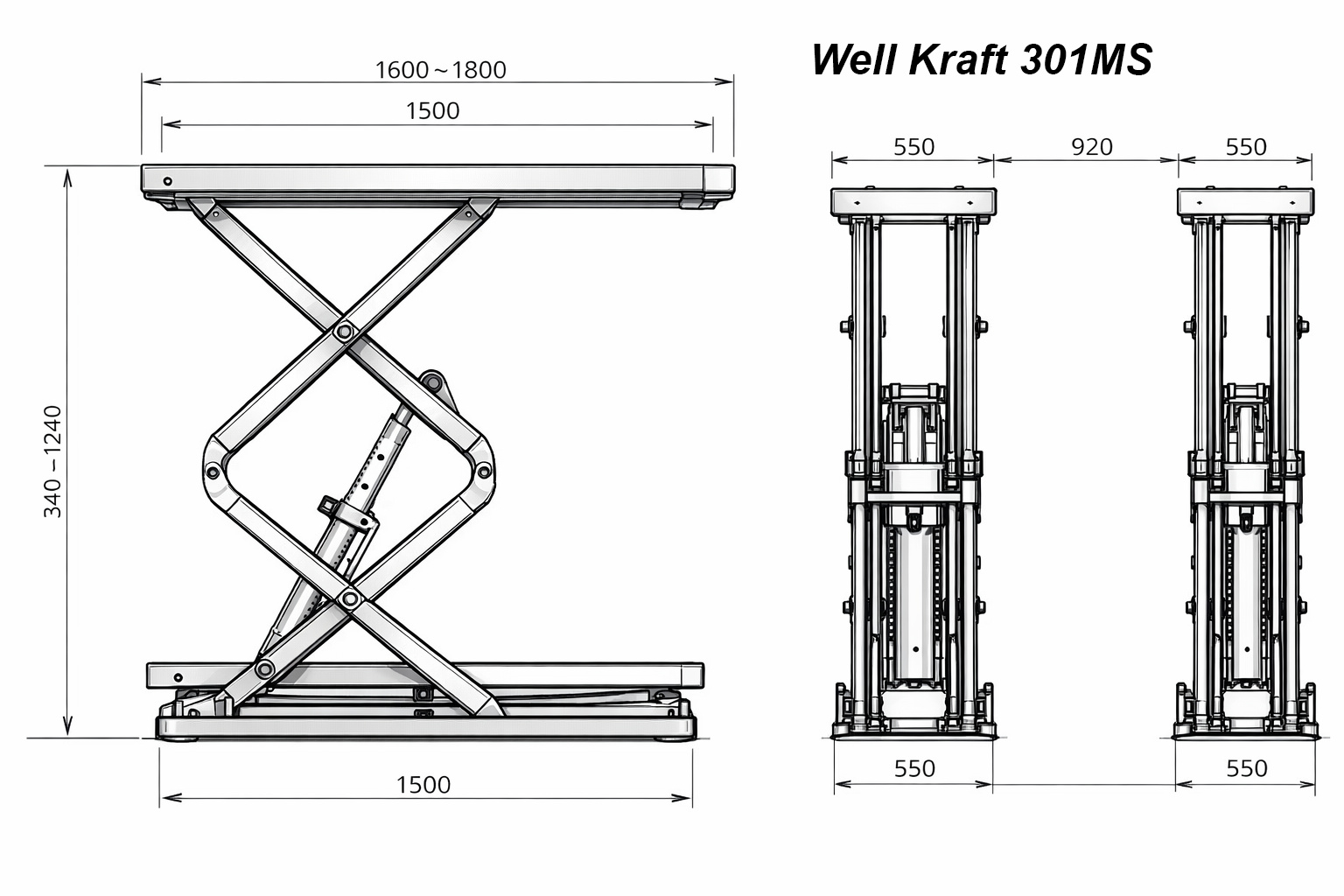

WK301MS
WK305MS
Technical specifications
WK301MS — 3000 kg
| Type | Electro-hydraulic |
| Max lifting capacity | 3000 kg |
| Main platform lifting height | 2140 mm |
| Platform initial height | 340 mm |
| Platform length | 1600–1800 mm |
| Platform width | 550 mm |
| Lifting time | ≤ 50 s |
| Lowering time | ≤ 60 s |
| Overall length | 1800 mm |
| Overall width | 2020 mm |
| Machine weight | 700 kg |
| Voltage | AC 380 V or 220 V ±5% (50/60 Hz) |
| Total power | 2.2 kW |
| Hydraulic oil | 20 L (wear-resistant hydraulic oil) |
| Air pressure | 4–5 kg/cm² |
| Operating temperature | 5–40°C |
| Operating humidity | 30–95% |
| Noise level | < 76 dB |
| Installation altitude | Above sea level < 1000 m |
| Storage temperature | -25°C ~ 55°C |
| Installation | Indoors |
WK305MS — 3500 kg
| Type | Electro-hydraulic |
| Max lifting capacity | 3500 kg |
| Main platform lifting height | 2140 mm |
| Platform initial height | 340 mm |
| Platform length | 1700–2100 mm |
| Platform width | 550 mm |
| Lifting time | ≤ 50 s |
| Lowering time | ≤ 60 s |
| Overall length | 2040 mm |
| Overall width | 2020 mm |
| Machine weight | 700 kg |
| Voltage | AC 380 V or 220 V ±5% (50/60 Hz) |
| Total power | 2.2 kW |
| Hydraulic oil | 20 L (wear-resistant hydraulic oil) |
| Air pressure | 4–5 kg/cm² |
| Operating temperature | 5–40°C |
| Operating humidity | 30–95% |
| Noise level | < 76 dB |
| Installation altitude | Above sea level < 1000 m |
| Storage temperature | -25°C ~ 55°C |
| Installation | Indoors |
Motor (WK301MS / WK305MS)
| Type | YL90L-2 |
| Max power | 2.2 kW |
| Rated voltage | AC 380 or 220 V ±5% |
| Current (380 V) | 5 A |
| Current (220 V) | 10 A |
| Frequency | 50/60 Hz |
| Poles | 4 |
| Speed | 2850 rpm |
Pump (WK301MS / WK305MS)
| Type | P2.0 |
| Model | Gear pump |
| Max flow | 2.0 cm³/rev |
| Connection (type) | JOINT |
| Valve | Relief valve |
| Continuous working pressure | 210 bar |
| Intermittent working pressure | 150–300 bar |
